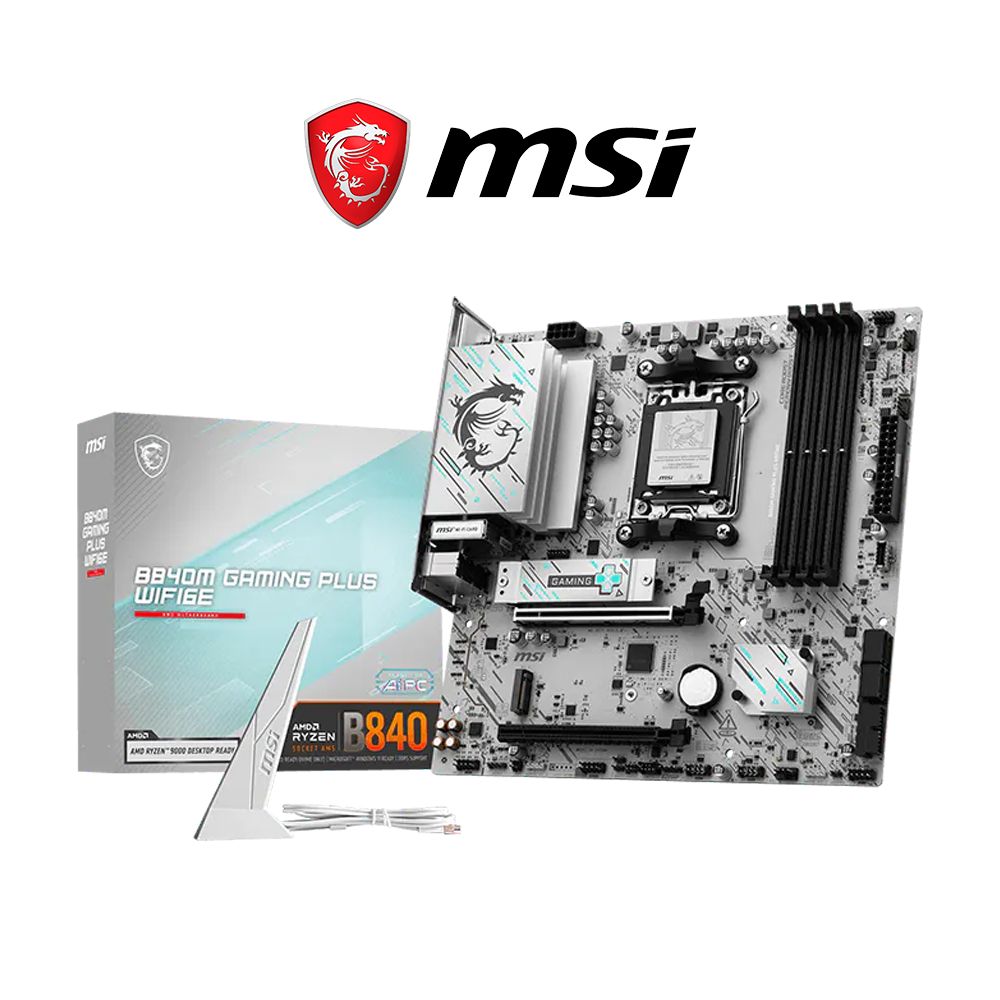

MSI B840M Gaming Plus WIFI6E AM5 DDR5 Motherboard
Availability: Confirm Stock & Price before Ordering.
Available on backorder
The MSI B840M Gaming Plus WIFI6E is a micro-ATX motherboard designed for the AMD AM5 platform, delivering a balanced blend of DDR5 performance, PCIe 4.0 storage speeds, and robust high-speed wireless connectivity tailored for mainstream gamers.
Shipping & Delivery
-
Payment Method
Cash on Delivery, Store Pickup, Bank Transfer, Paypal, Gcash, Credit Card
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
₱590
-
Warranty 1 year
Specification
Overview
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Processor
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Display
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
RAM
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Storage
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Video Card
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Connectivity
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Features
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Battery
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
General
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Description
| Specifications | Details |
|---|---|
| CPU Socket | AMD Socket AM5 |
| Processor Support | AMD Ryzen 9000, 8000, and 7000 Series desktop processors |
| Chipset | AMD B840 |
| Memory Slots | 4x DDR5 DIMM slots, Dual Channel architecture |
| Memory Capacity | Up to 256GB maximum RAM capacity |
| Memory Speed | Up to 8000+ MT/s (Overclocked) / 5600 MT/s (JEDEC) |
| Power Design | 7+2+1 Phase Direct CPU Power System with Core Boost |
| Expansion Slots | 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot |
| Storage (M.2) | 2x M.2 slots (Both supporting PCIe 4.0 x4 speeds) |
| Storage (SATA) | 4x SATA 6Gbps ports |
| Wireless Networking | Wi-Fi 6E (supports 6GHz band) and Bluetooth 5.3 |
| Wired LAN | 1x Realtek 2.5G Gigabit Ethernet LAN |
| Rear USB Ports | 2x USB 10Gbps (1x Type-A + 1x Type-C), 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Front USB Head | 1x USB Type-C interface, 2x USB 5Gbps, 4x USB 2.0 |
| Video Outputs | 1x HDMI 2.1 port (Supports up to 4K @ 60Hz) |
| Audio Solution | Realtek ALC897 7.1-Channel High Definition Audio with Audio Boost |
| Form Factor | Micro-ATX (mATX) |
| PCB Construction | 6-layer PCB with 2oz thickened copper |
| Thermal Features | Extended Heatsink design, 7W/mK MOSFET pads, M.2 Shield Frozr II |
| DIY Friendly Features | EZ M.2 Clip II, EZ PCIe Clip II, EZ Antenna, Flash BIOS button |
