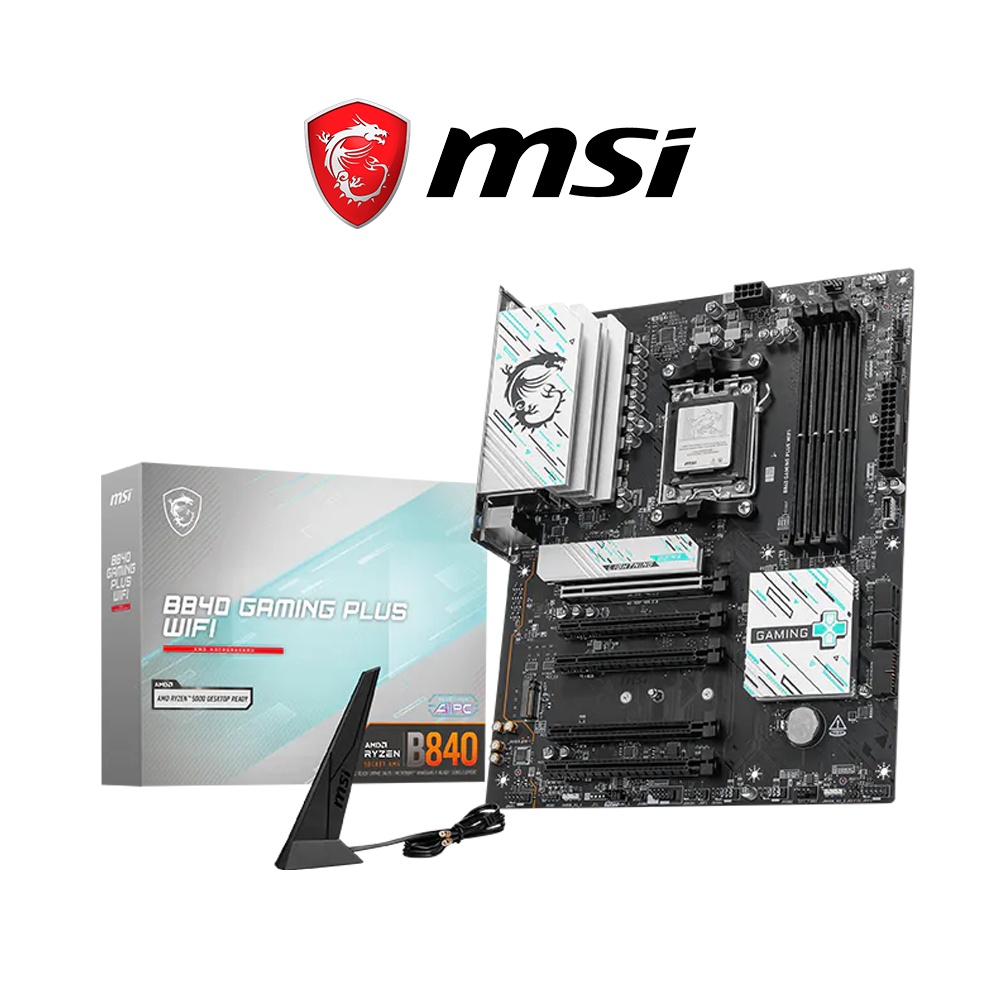

MSI B840 Gaming Plus WIFI AM5 DDR5 Motherboard
Availability: Confirm Stock & Price before Ordering.
Available on backorder
The MSI B840 Gaming Plus WIFI is a feature-rich, mid-range ATX motherboard designed to deliver high-speed wireless connectivity and stable performance for modern AMD gaming builds.
Shipping & Delivery
-
Payment Method
Cash on Delivery, Store Pickup, Bank Transfer, Paypal, Gcash, Credit Card
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
₱590
-
Warranty 1 year
Specification
Overview
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Processor
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Display
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
RAM
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Storage
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Video Card
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Connectivity
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Features
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Battery
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
General
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Description
| Specifications | Details |
|---|---|
| CPU Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors |
| Chipset | AMD B840 |
| Form Factor | ATX (243.84mm x 304.8mm) |
| Memory Support | 4x DDR5 UDIMM slots, Dual-Channel, up to 256GB maximum capacity |
| Memory Speed | Overclocking speeds up to 8000+ MT/s (OC) |
| Expansion Slots | 1x PCIe 4.0 x16 slot (with Steel Armor), 4x PCIe 3.0 slots |
| Storage Interfaces | 2x M.2 Gen4 x4 slots, 4x SATA 6Gb/s ports |
| Wireless Connectivity | Integrated Wi-Fi 7 module, Bluetooth 5.4 |
| Wired LAN | Realtek 2.5Gbps Ethernet controller |
| Audio | Realtek ALC897 Codec, 7.1-Channel HD Audio with Audio Boost |
| Rear USB Ports | 1x USB 10Gbps Type-C, 1x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Video Output | 1x HDMI 2.1 port (supports resolutions up to 4K @ 60Hz) |
| Power Delivery | 7+2+1 Phase Direct CPU Power system with an 8-pin connector |
| Cooling Features | Extended heatsink, 7W/mK MOSFET thermal pads, EZ M.2 Shield Frozr II |
| DIY Friendly Features | EZ M.2 Clip II, EZ PCIe Clip II, Flash BIOS button, Clear CMOS button |
