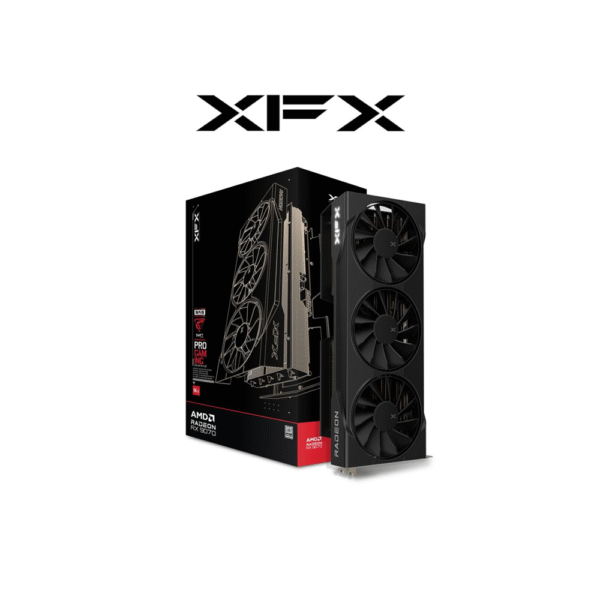

XFX Swift AMD Radeon RX 9070XT Triple Fan Gaming Edition – Specifications
Graphics Processor
-
GPU Model: AMD Radeon™ RX 9070XT
-
Stream Processors: 4096
-
Compute Units: 64
-
Boost Clock: Up to 2970 MHz
-
Game Clock: Up to 2400 MHz
-
Base Clock: Up to 1660 MHz
-
Architecture: RDNA 4
-
Process Technology: Chiplet Design
Memory Specifications
-
Memory Size: 16 GB
-
Memory Type: GDDR6
-
Memory Bus: 256-bit
-
Memory Clock: 20 Gbps
-
Memory Bandwidth: 640 GB/s
Interface & Connectivity
-
PCI® Interface: PCI Express 5.0 (x16)
-
DisplayPort: 3 x DisplayPort 2.1
-
HDMI: 1 x HDMI 2.1
-
HDCP Support: Yes
Cooling & Power
-
Cooling Solution: Triple Fan
-
Heat Dispersal: Nickel-plated copper cold plate and heat pipes
-
Fan Feature: Zero DB Fan (Fans stop at low load)
-
Power Connectors: 2 x 8-pin
-
Minimum PSU Recommendation: 800W
Physical Specifications
-
Card Dimensions (L x H x W): 325 mm x 150 mm x 65 mm (12.8″ x 5.91″ x 2.56″)
-
Slot Profile: 3.5-Slot
Supported Technologies
-
AMD Software: HYPR-RX, Fluid Motion Frames, Anti-Lag+
-
Upscaling: AMD FidelityFX™ Super Resolution 4 (FSR 4)
-
Ray Tracing: Yes
-
VR Ready: Yes
-
Multi-Monitor Support: Yes (Up to 4 displays)
-
AMD FreeSync™: Yes
-
DirectX® 12 Support: Yes
-
Vulkan® Support: Yes
