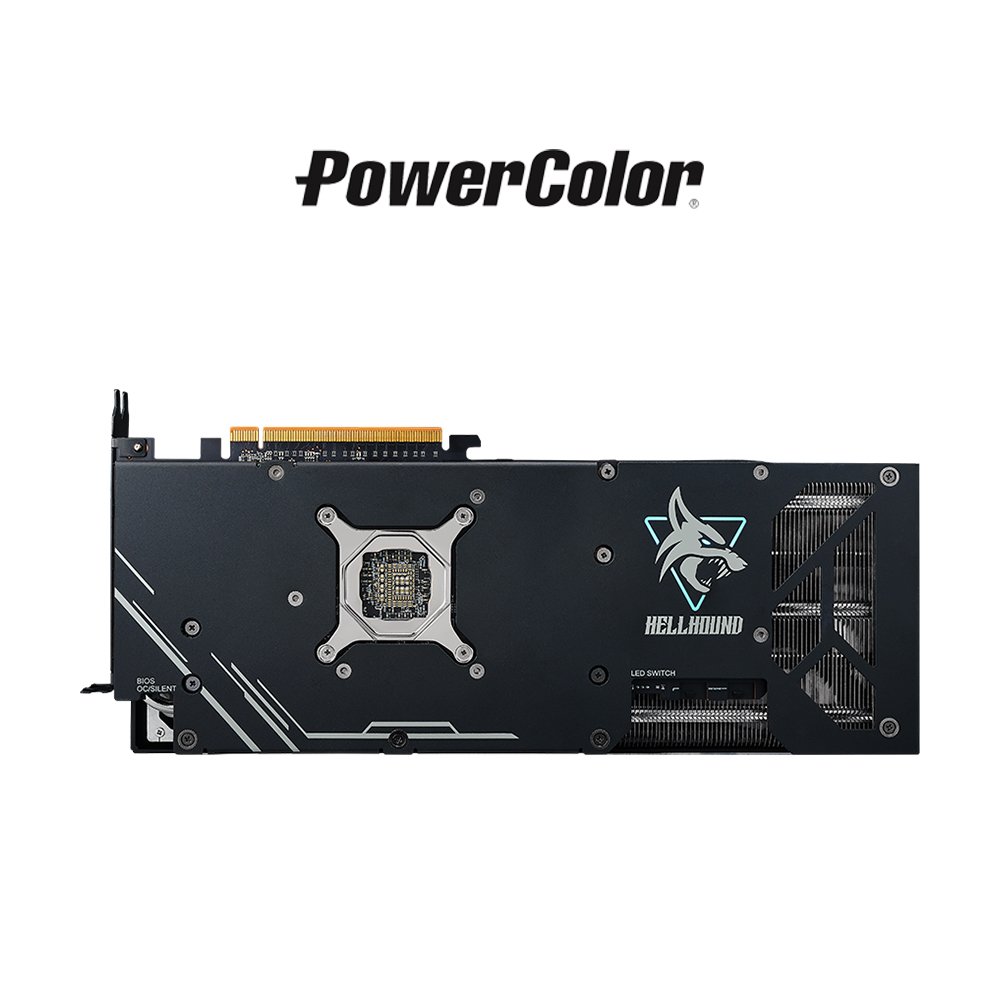

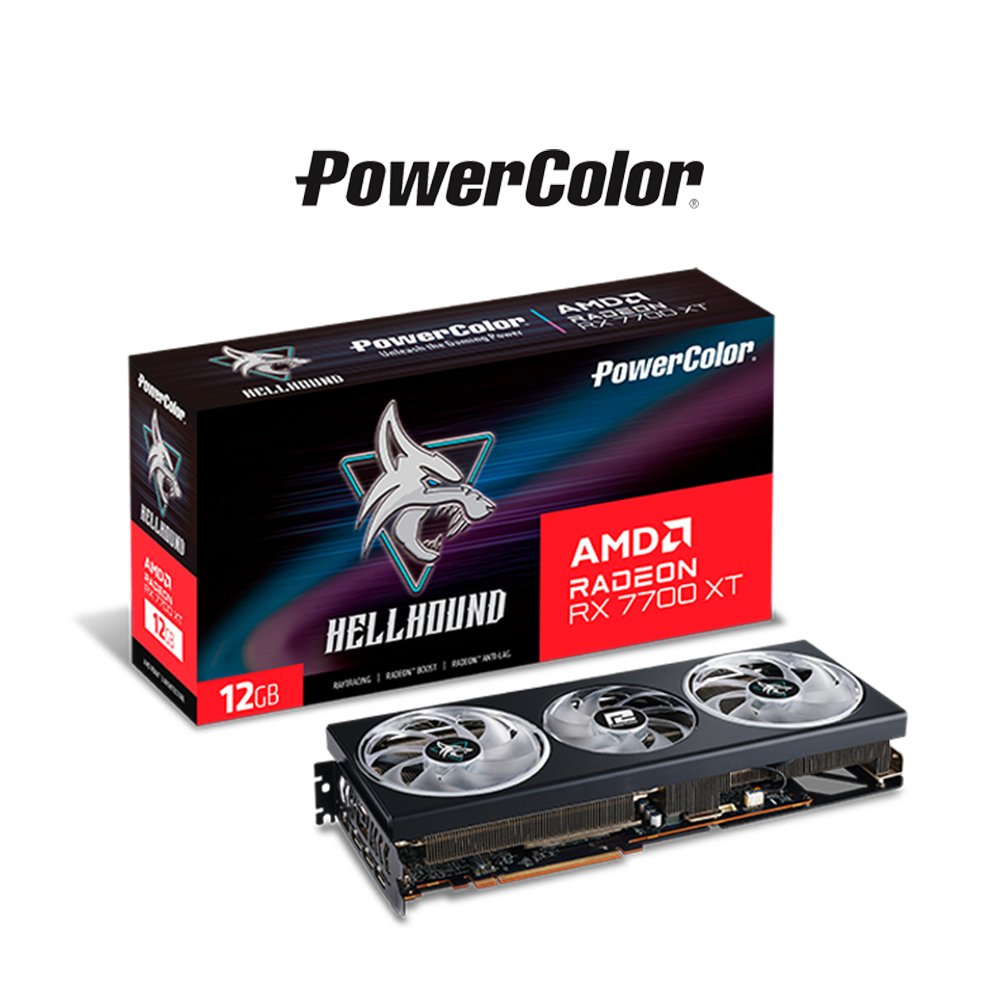

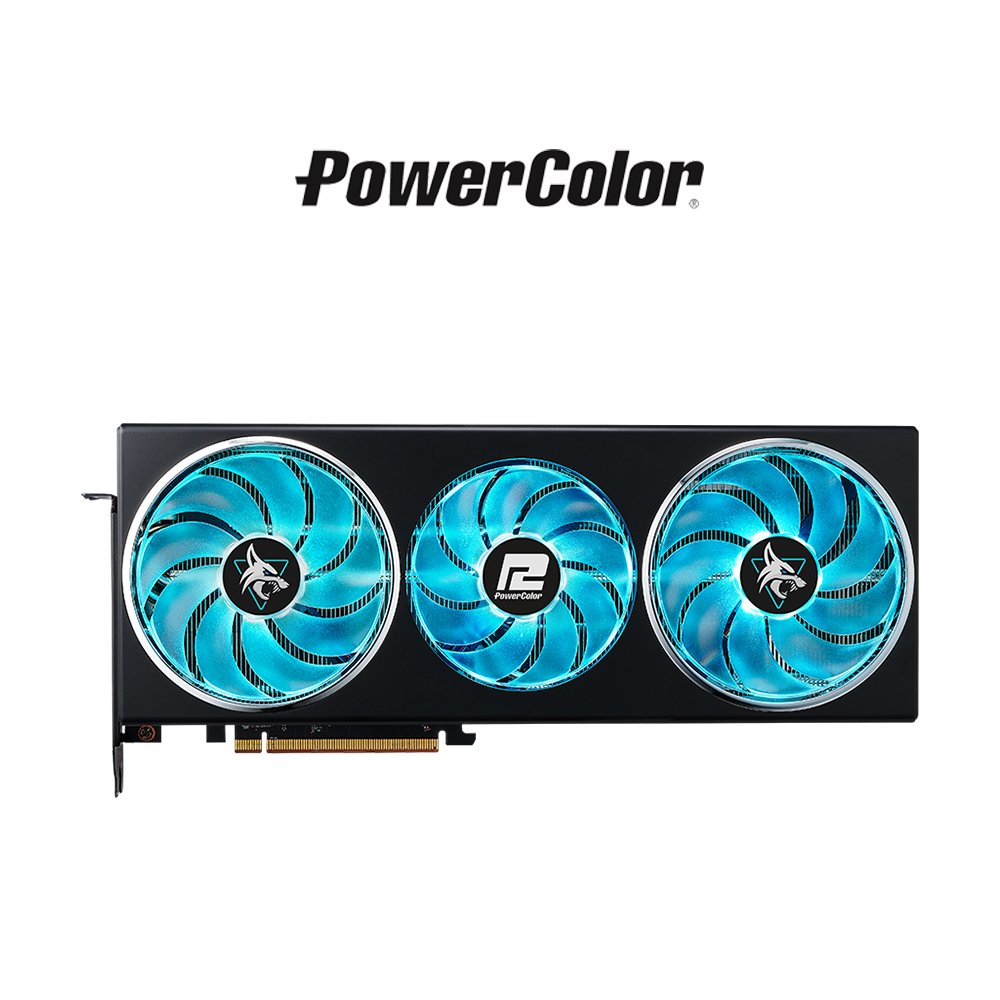

PowerColor Radeon RX 7700 XT Hellhound AMD 12GB Graphics Card

Graphics Engine RX 7700 XT 12G-L/OC

Video Memory 12GB GDDR6

Stream Processor 3456 Units

Engine Clock(OC) up to 2276MHz(Game)

up to 2599MHz(Boost)

Engine Clock(STD/Silent) up to 2226MHz(Game)

up to 2584MHz(Boost)

Memory Clock 18.0 Gbps

Memory Interface 192-bit

DirectX® Support 12

Bus Standard PCIE 4.0

Standard Display Connectors 1 x HDMI 2.1，3 x DisplayPort 2.1

(only 2x simultaneous DP2.1 connections can be supported)

Maximum Resolution

VGA

DVI

DisplayPort 7680×4320

HDMI 7680×4320

Power Specs + Board Dimensions

Board Dimensions 322mm*134mm*50mm

332mm*147mm*50mm(with bracket)

Minimum System Power requirement (W) 750W

Extension Power Connector Two 8-pin PCI Express Power connectors
