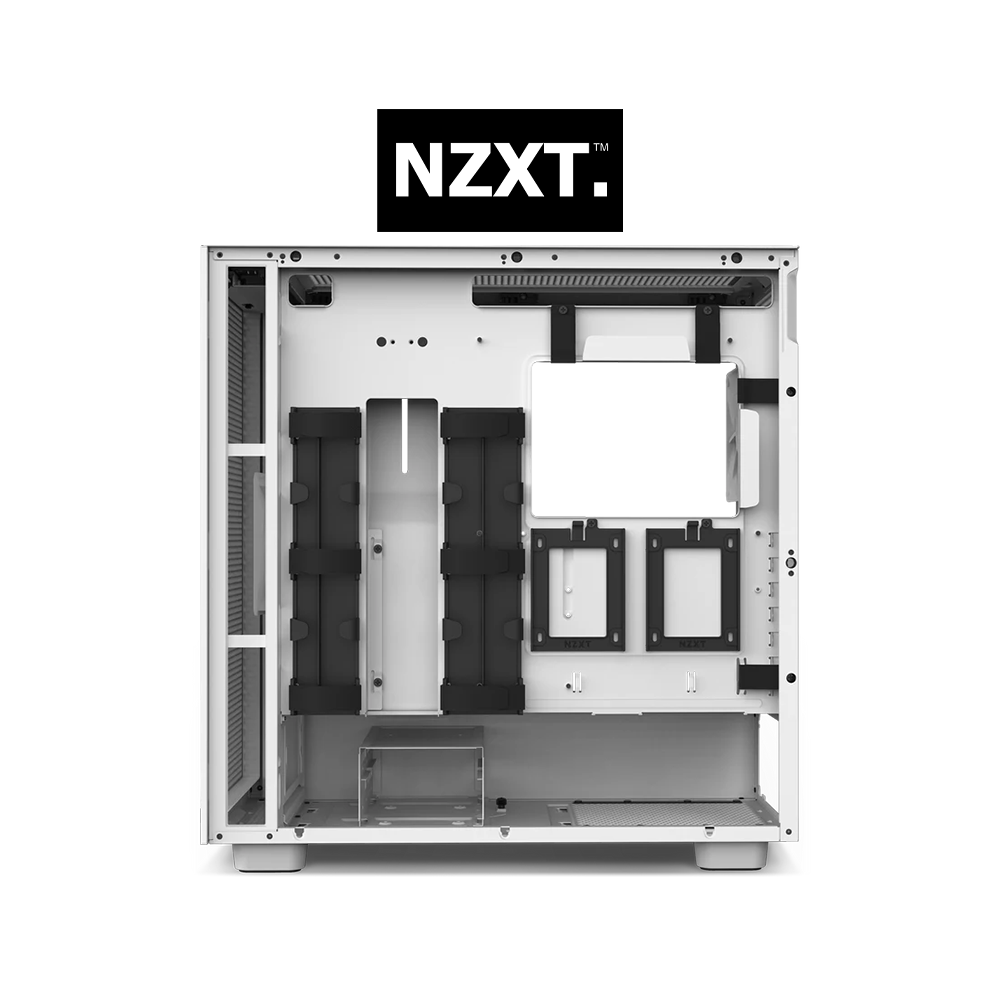

NZXT H7 Flow 2022 ATX Mid-Tower Airflow Mesh PC Case (White)

The NZXT H7 Flow is a mid-tower ATX PC case designed for maximum airflow, featuring perforated mesh panels on the front and top to ensure excellent thermal performance. It offers a spacious interior with ample clearance for large GPUs and robust cable management options for a clean build. The case includes two pre-installed F120Q fans and a tempered glass side panel, making it suitable for high-performance systems and aesthetic builds alike.

Add to compare

Add to wishlist

Shipping & Delivery

Payment Method

Cash on Delivery, Store Pickup, Bank Transfer, Paypal, Gcash, Credit Card

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

₱590

Warranty 1 year

Contact Us

Specification

Overview

Processor

Display

RAM

Storage

Video Card

Connectivity

Features

Battery

General

Description

Category	Specification
Motherboard Support	Mini-ITX, Micro-ATX, ATX, and EATX (up to 272mm/10.7″)
Enclosure Type	Mid-Tower
Case Material	SGCC Steel, Ultra-clear Tempered Glass side panel, High-Performance Mesh front and top panels
Dimensions (H x W x D)	With Feet: 505 mm x 230 mm x 480 mm
Weight	10.05 kg
Max CPU Cooler Clearance	Up to 185 mm
Max GPU Clearance	Up to 400 mm
Max PSU Length	Up to 200 mm (or up to 262mm depending on configuration)
Cable Management Clearance	18-22 mm
Expansion Slots	7 (Standard)
Drive Bays	2.5″: 4+2 (total of six possible)
	3.5″: 2
Front I/O Ports	2 x USB 3.2 Gen 1 Type-A
	1 x USB 3.2 Gen 2 Type-C (20 Gbps)
	1 x Headset Audio Jack
Included Fans (Case Version)	Front: 1 x F120Q Airflow Fan (Case Version)
	Rear: 1 x F120Q Airflow Fan (Case Version)
Fan Support	Front: 3 x 120 mm or 3 x 140 mm
	Top: 3 x 120 mm or 2 x 140 mm
	Rear: 1 x 120 mm or 1 x 140 mm
	Bottom: 3 x 120 mm (requires vertical PSU layout)
Radiator Support	Front: Up to 360 mm (with push/pull configurations)
	Top: Up to 360 mm
	Rear: Up to 140 mm
Dust Filters	All Air Intakes (High-performance mesh)
