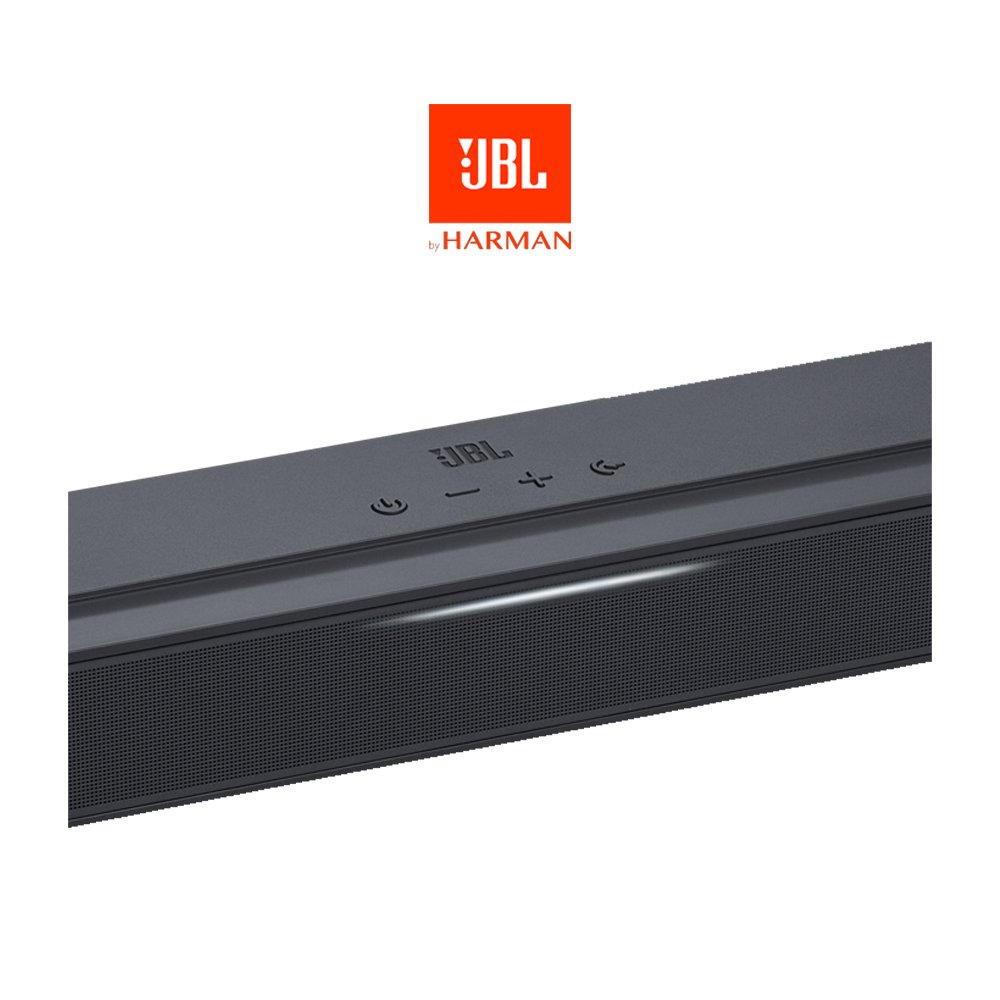

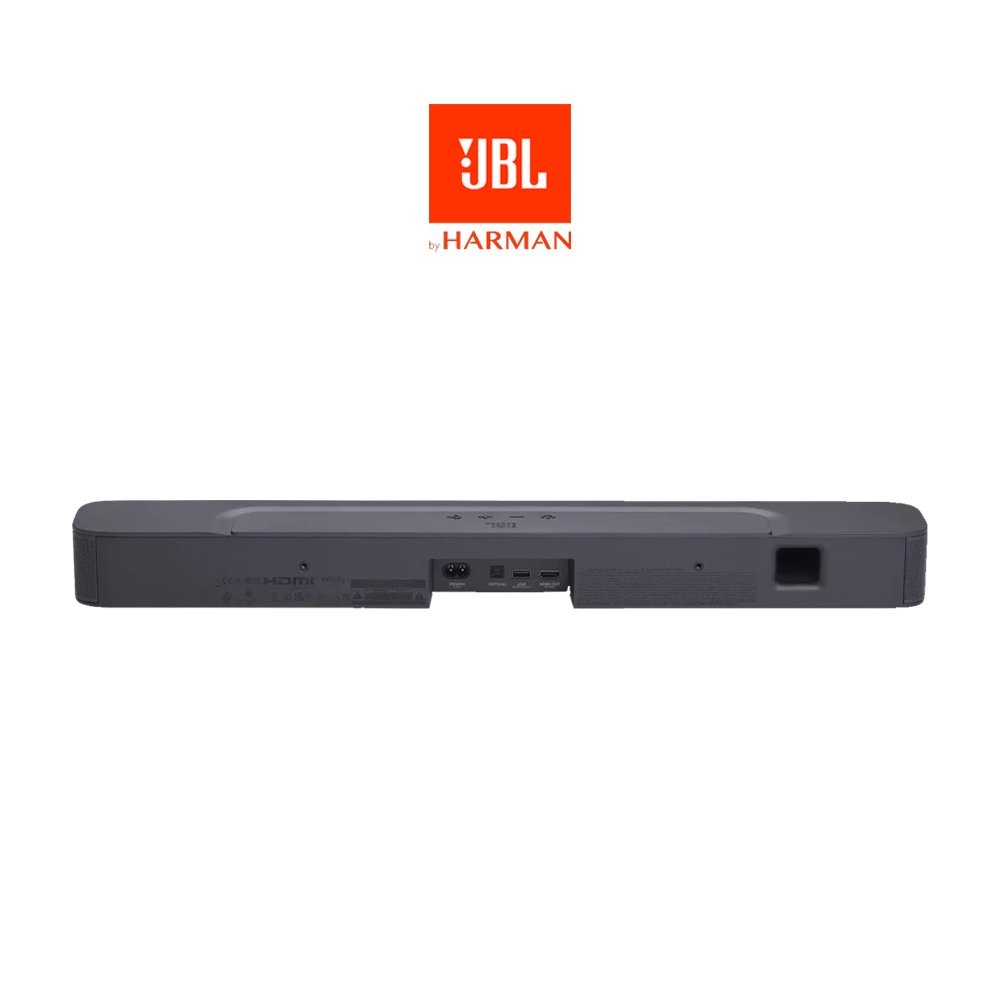

JBL Bar 2.0 All in One Speaker Soundbar

General Specifications

Power supply

100 – 240V AC, ~ 50/60Hz

Soundbar standby power

<0.5W

Operating temperature

0°C – 45°C

Audio Specifications

Total speaker power output (Max. @THD 1%)

80W

Soundbar output power (Max. @THD 1%)

2 x 40 W

Soundbar transducer

2 x racetrack drivers

Frequency response

70Hz – 20KHz

Audio inputs

1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Soundbar dimensions (W x H x D):

614 x 56 x 90 (mm) / 24.2” x 2.2” x 3.5”

Soundbar weight

1.6 kg

Packaging dimensions (W x H x D)

855 x125 x 145mm

Packaging weight (Gross weight)

2.6kg

Control and Connection Specifications

USB port

Type A

USB rating

5V DC / 0.5A

Supporting file format

mp3, wav

MP3 Codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16KHz – 48 KHz

MP3 bitrate

80kbps – 320kbps

WAV sample rate

16KHz – 48 KHz

WAV bitrate

Up to 3000kbps

Bluetooth version

4.2

Bluetooth profile

A2DP V1.3, AVRCP V1.5

Bluetooth frequency range

2402MHz – 2480MHz

Bluetooth Max. transmitting power

<10dBm (EIRP)

Modulation Type

GFSK, π/4 DQPSK, 8DPSK

Video Specifications

HDMI Video output (With Audio return channel)

1

What’s in The Box?

Soundbar

Remote control with batteries

Power cables (up to 4pcs depending on region SKUs)

HDMI cable

Wall-mount bracket kit with screws

Quick start guide

Warranty card

Safety sheet
