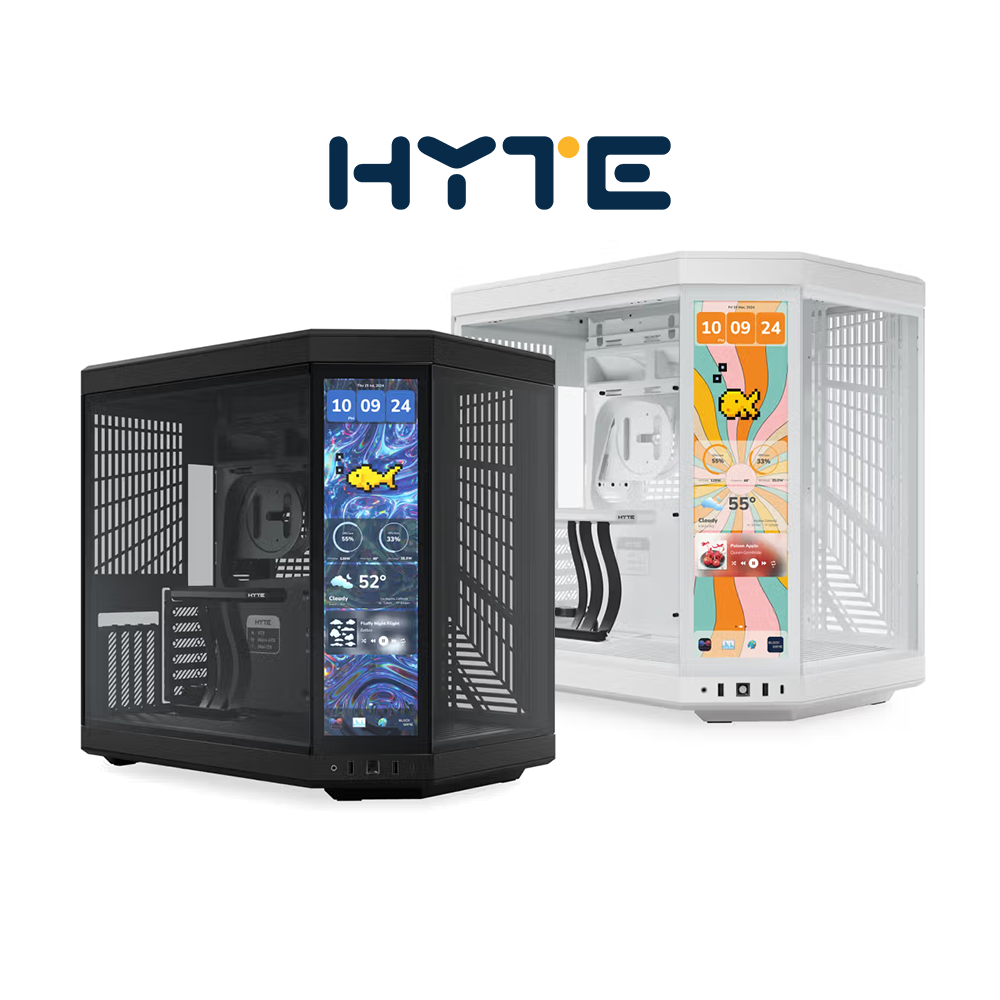

Technical Specifications
| Feature | Details |
|---|---|
| Type | Dual Chamber Mid-Tower ATX Case |
| Exterior Dimensions (H x W x D) | 470 x 320 x 470 mm (18.5 x 12.6 x 18.5 in) |
| Volume | 70.7 L |
| Case Materials | SGCC Steel, ABS plastic, Tempered Glass |
| Weight | ~11.1 kg (~24.4 lbs) |
| Motherboard Support | ITX, Micro-ATX, ATX, EATX |
| Expansion Slots | 7 half-height + 4 full-height (vertical) |
| Included Riser Cable | PCIe 4.0 x16 (luxury, color-matched) |
| Front I/O Ports | 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x 3.5mm Audio/Mic Combo Jack |
| Dust Filters | Top, Side, Bottom (removable) |
Component Clearances & Support
| Component | Maximum Clearance/Support |
|---|---|
| Max GPU Length | 422 mm |
| Max GPU Thickness | 105 mm (4 slots supported with extra airflow space) |
| Max CPU Cooler Height | 180 mm |
| Max PSU Length | 235 mm |
| Storage Options | 2x 3.5″ HDD or 4x 2.5″ SSD |
Fan & Radiator Support
| Location | Fan Support | Radiator Support (Max Thickness) |
|---|---|---|
| Top | 3x 120 mm or 2x 140 mm | Up to 360 mm or 280 mm (68 mm thick) |
| Side | 3x 120 mm or 2x 140 mm | Up to 360 mm or 280 mm (125 mm thick) |
| Rear | 1x 120 mm or 1x 140 mm | 120 mm or 140 mm |
| Bottom | 3x 120 mm or 2x 140 mm | Up to 360 mm (32 mm thick) |
Integrated Touchscreen SpecificationsÂ
| Display Feature | Details |
|---|---|
| Panel Type | IPS Capacitive Touchscreen |
| Size | 14.9 inches |
| Resolution | 682 x 2560 (2.5K) |
| Refresh Rate | 60 Hz |
| Brightness | 500 nits |
| Contrast Ratio | 1000:1 |
| Touch Input | 10-point multi-touch |
| Connections | USB 2.0 header, SATA power, DisplayPort |
| Software | Powered by HYTE Nexus software for customization |
