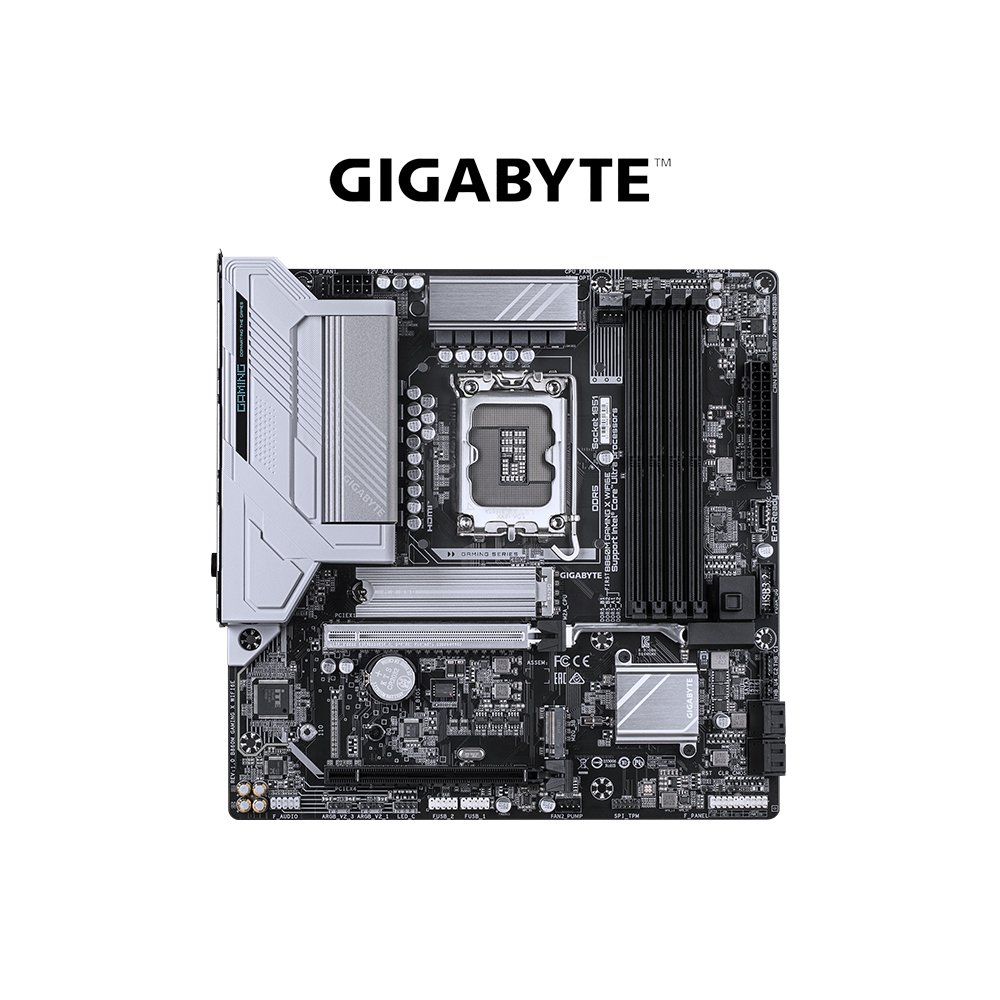

Gigabyte B860M Gaming X Wifi 6E Intel DDR5

Name: Gigabyte B860M Gaming X Wifi 6E Intel DDR5
Brand: Gigabyte
SKU: 3546
Availability: InStock

₱12,950.00

> Supports Intel® Core™ Ultra processors (Series 2)

> Hybrid Digital 8+1+2 phases VRM solution

> D5 Bionic Corsa for Infinite Memory Performance

> AI Perfdrive: Provides optimal and customized BIOS preset profile for users

> WIFI EZ-Plug: : Quick and easy design for Wi-Fi antenna installation

> EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design

> EZ-Latch Click: M.2 heatsinks with screwless design

> Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

> New Power Monitor in HWinfo for real-time monitoring on CPU power phases

> Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4

> Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard

> Fast Networking: 2.5GbE LAN & Wi-Fi 6E 802.11ax

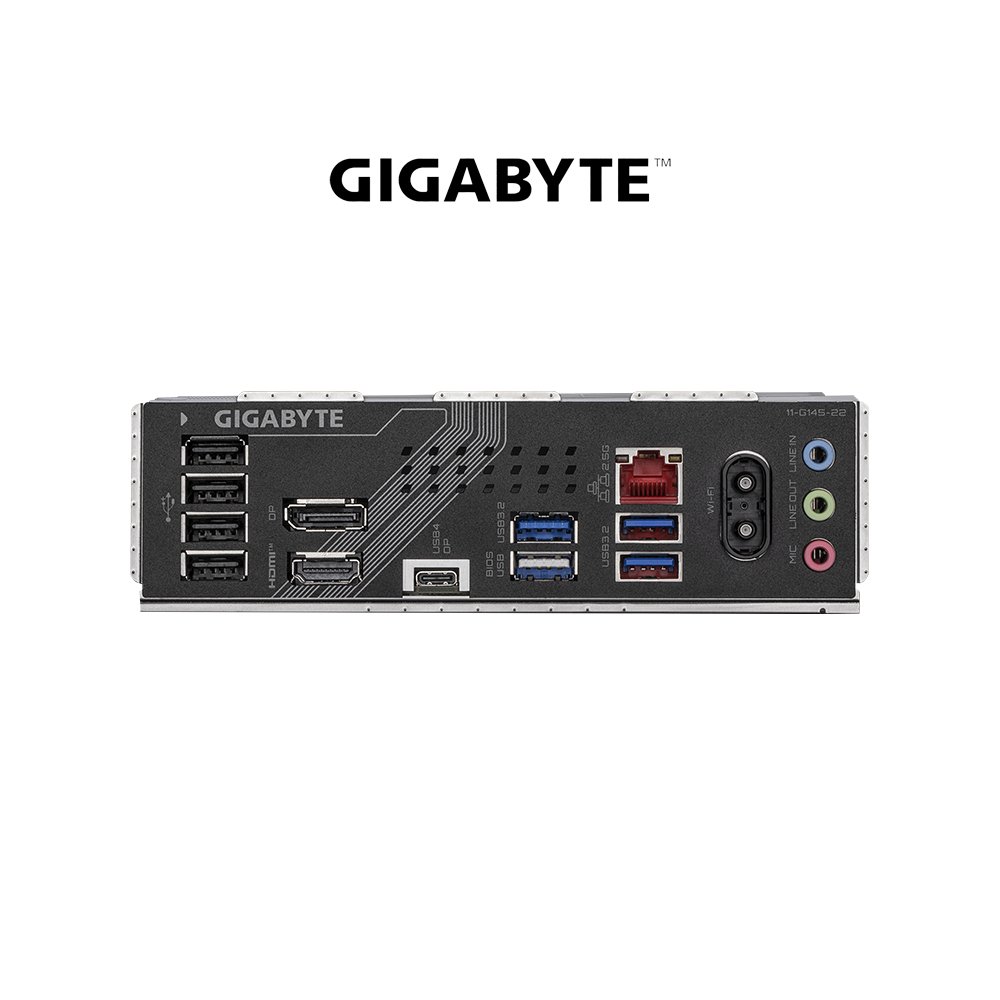

> Extended Connectivity: USB4 Type-C with DP-Alt, HDMI, DisplayPort

Add to compare

Add to wishlist

URL has been copied successfully!

Shipping & Delivery

Payment Method

Cash on Deliver, Store Pickup, Bank Transfer, Paypal, Gcash, Credit Card

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

₱590

Warranty 1 year

Contact Us

Specification

Overview

RAM (Builder)	DDR5
Socket (Builder)	LGA1700

Processor

RAM (Builder)	DDR5
Socket (Builder)	LGA1700

Display

RAM (Builder)	DDR5
Socket (Builder)	LGA1700

RAM

RAM (Builder)	DDR5
Socket (Builder)	LGA1700

Storage

RAM (Builder)	DDR5
Socket (Builder)	LGA1700

Video Card

RAM (Builder)	DDR5
Socket (Builder)	LGA1700

Connectivity

RAM (Builder)	DDR5
Socket (Builder)	LGA1700

Features

RAM (Builder)	DDR5
Socket (Builder)	LGA1700

Battery

RAM (Builder)	DDR5
Socket (Builder)	LGA1700

General

RAM (Builder)	DDR5
Socket (Builder)	LGA1700

Description

CPU

> LGA1851 socket: Support for Intel® Core™ Ultra Processors

> L3 cache varies with CPU

Chipset

> Intel® B860 Express

Memory

> Support for DDR5 9200(O.C)/ 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules

> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

> Dual channel memory architecture

> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

>Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

> Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

> Integrated Graphics Processor-Intel® HD Graphics support:

– 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz

* Support for DisplayPort 2.1 version.

– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz

* Support for DisplayPort 2.1 version.

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

Support for up to triple-display at the same time

Audio

> Realtek® Audio CODEC

> High Definition Audio

> 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

> Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

> Intel® Wi-Fi 6E AX211 (PCB rev. 1.0/2.0)

– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

– BLUETOOTH 5.3

– Support for 11ax 160MHz wireless standard

> Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1/2.1)

– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

– BLUETOOTH 5.3

– Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)
