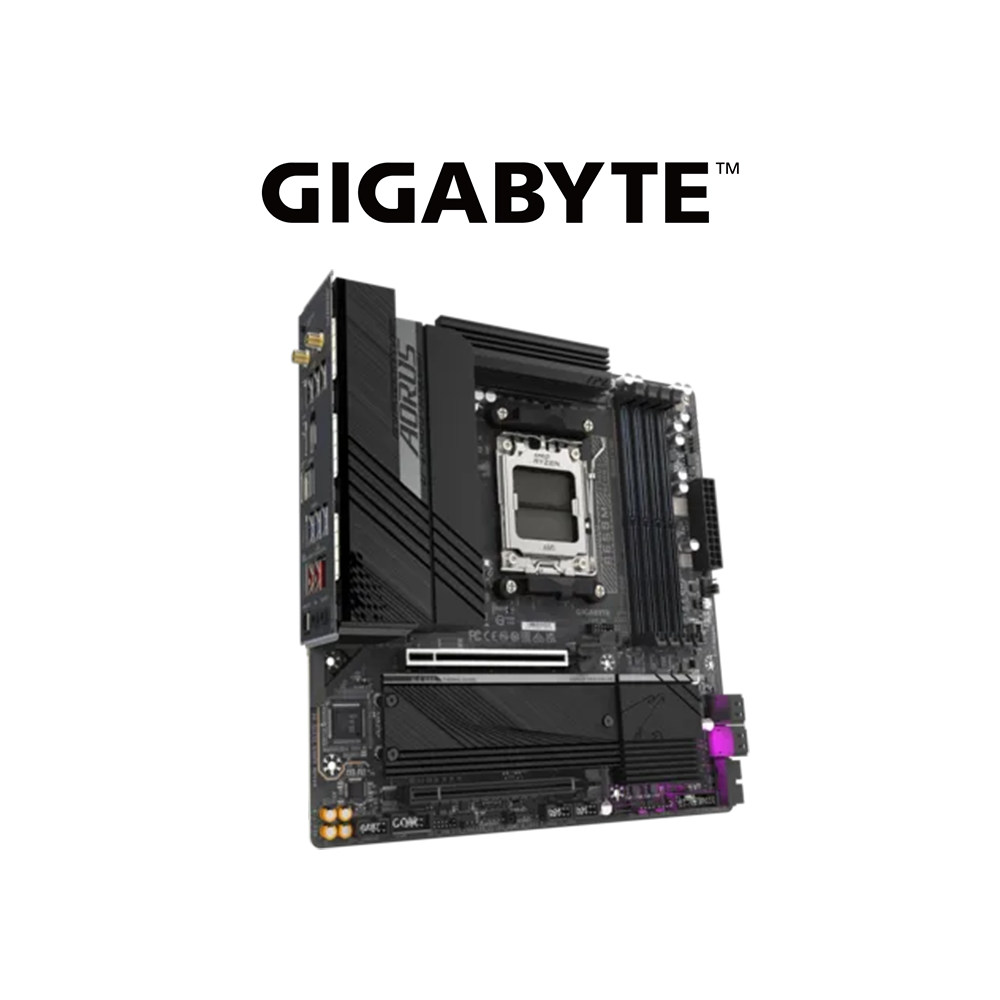

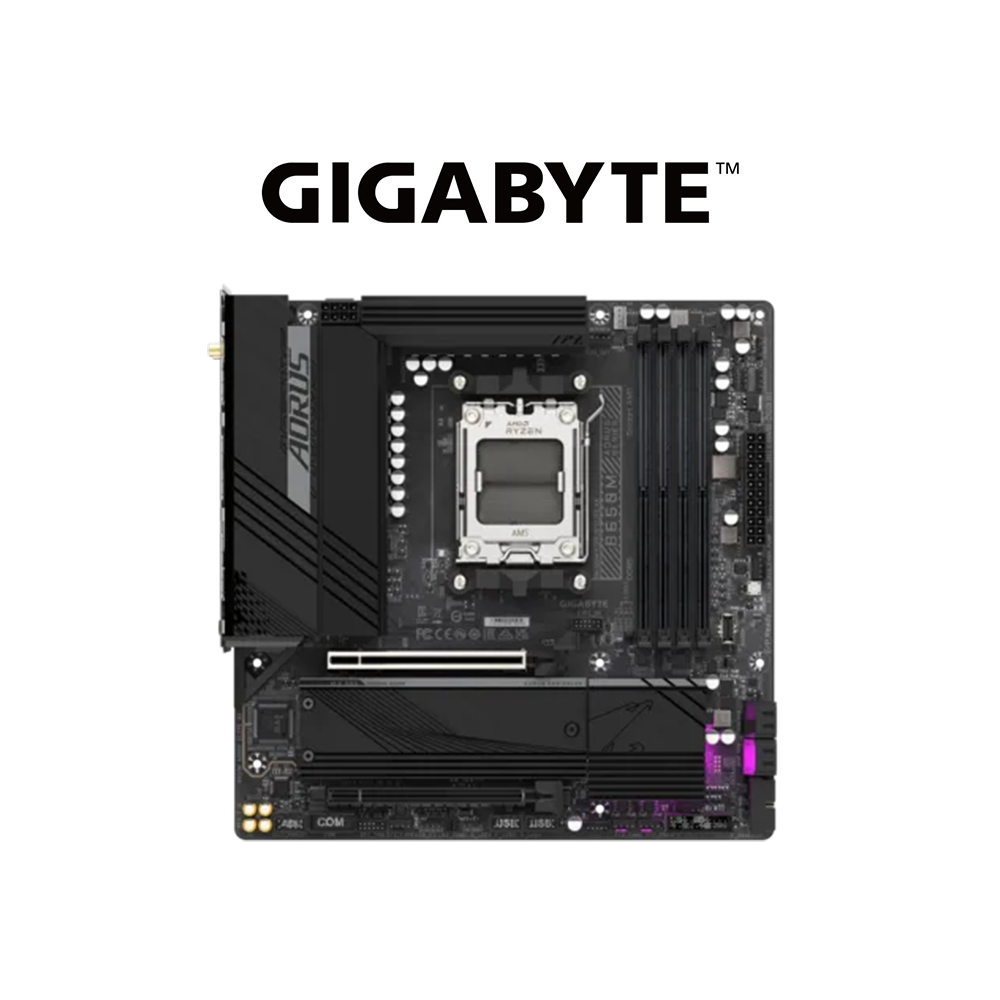

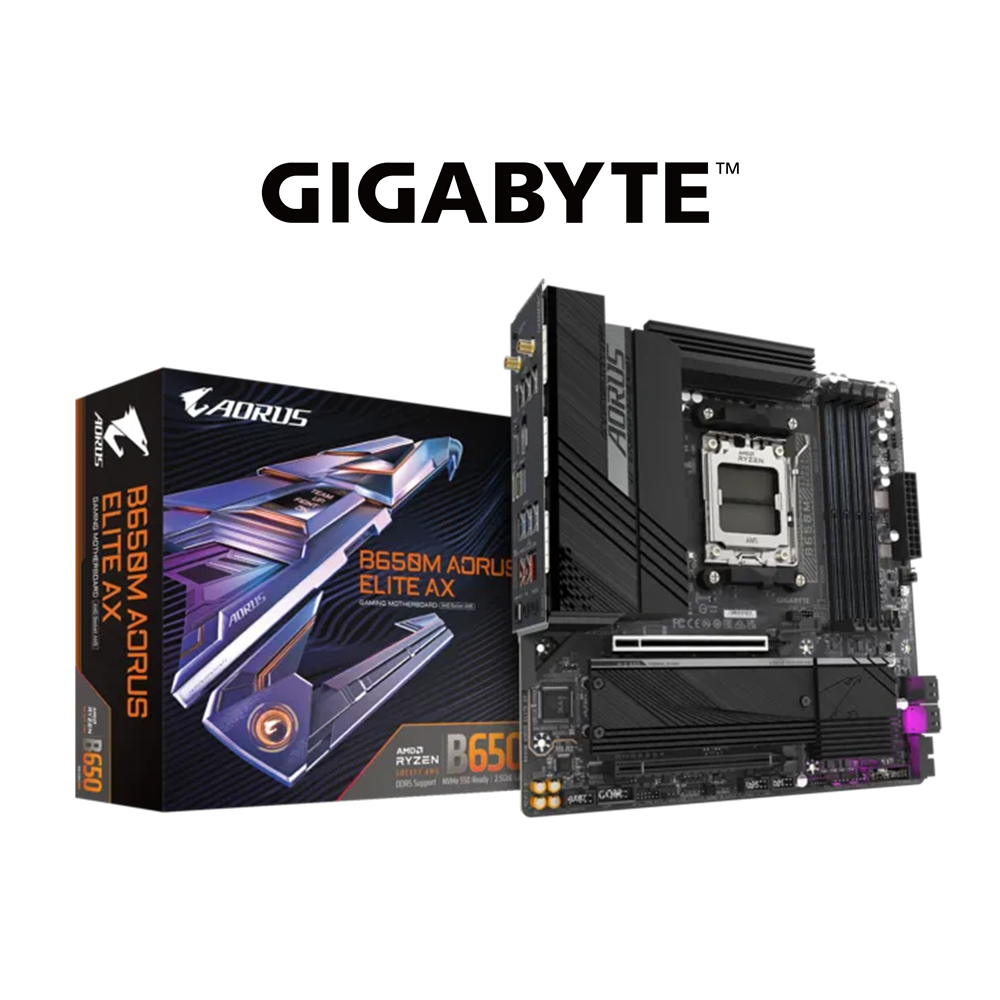

Gigabyte B650M AORUS ELITE AX Micro ATX Motherboard
Availability: Confirm Stock & Price before Ordering.
₱10,850.00
The Gigabyte B650M AORUS ELITE AX is a high-performance Micro-ATX motherboard designed for the AMD AM5 platform, supporting Ryzen™ 7000, 8000, and 9000 series processors. It features a robust power design and support for high-speed DDR5 memory and PCIe 5.0 storage.
Shipping & Delivery
-
Payment Method
Cash on Delivery, Store Pickup, Bank Transfer, Paypal, Gcash, Credit Card
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
₱590
-
Warranty 1 year
Specification
Overview
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Processor
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Display
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
RAM
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Storage
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Video Card
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Connectivity
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Features
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Battery
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
General
| CPU Socket | AM5 |
|---|---|
| RAM Type | DDR5 |
Description
| Feature | Details |
|---|---|
| CPU Socket | AMD Socket AM5 |
| Supported CPUs | AMD Ryzen™ 7000 / 8000 / 9000 Series Processors |
| Chipset | AMD B650 |
| Memory Support | 4 x DDR5 DIMM slots, Dual Channel; Supports up to 256GB (single DIMM up to 64GB) |
| Memory Speeds | Up to DDR5 8000(OC) with support for AMD EXPO™ & Intel® XMP |
| Power Design | Twin 12+2+1 or 12+2+2 Digital VRM solution (varies by revision) |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 4.0 x16 (runs at x4, Chipset) |
| Storage (M.2) | 1 x PCIe 5.0 x4/x2 (M2A_CPU), 1 x PCIe 4.0 x4/x2 (M2B_CPU) |
| Storage (SATA) | 4 x SATA 6Gb/s connectors; Supports RAID 0, 1, 10 |
| Wireless & BT | Wi-Fi 6E (802.11ax) and Bluetooth 5.2/5.3 (varies by revision) |
| Ethernet | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio | Realtek® Audio CODEC, High Definition Audio (2/4/5.1/7.1-channel) |
| Back Panel USB | 1 x USB-C (3.2 Gen 2), 2 x USB 3.2 Gen 2 Type-A, 5 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Internal USB | 1 x USB-C (3.2 Gen 2×2), 1 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Video Outputs | 1 x DisplayPort 1.4 (up to 3840×2160@144Hz), 1 x HDMI 2.1 (up to 4096×2160@60Hz) |
| Special Features | Q-Flash Plus button, RGB Fusion 2.0, M.2 EZ-Latch, PCIe EZ-Latch |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
