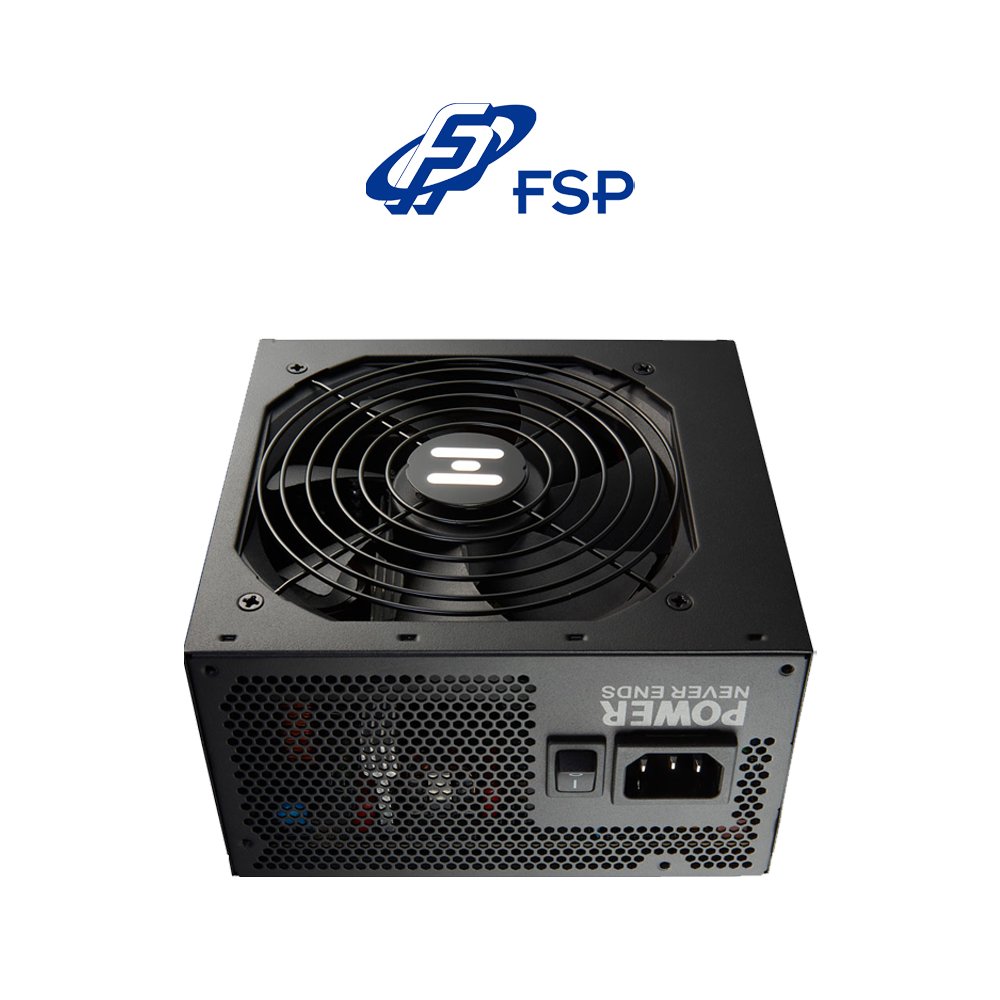

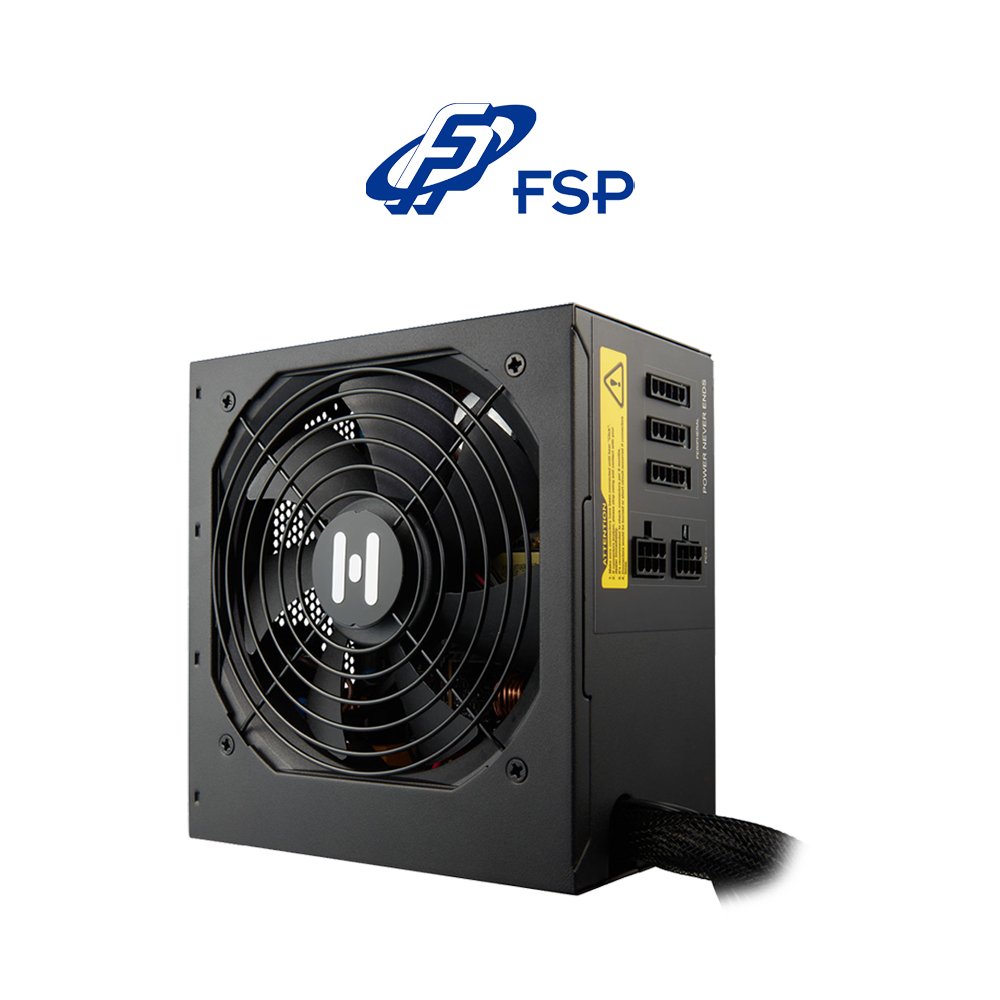

FSP Hydro M Pro 80+ Bronze Semi Modular ATX 3.0 Power Supply

Complies with ATX12 v2.52 & EPS12 V2.92

Efficiency≧ 88% at typical load

Active PFC ≧ 0.9

Hold up time ≧ 17ms at 80% Load

Semi-modular design with ribbon cables

450V, 105°C capacitors for a long product life cycle

120mm hydraulic bearing (HYB) fan

+5V & 3.3V DC to DC module design

+12V Single-Rail Design

Complete protections : OCP/OVP/OPP/SCP

SPECS:

Model HP2-700M

Rated Output Power 700W

Form Factor ATX

80 PLUS Certification 80 PLUS® 230V EU Bronze

Input Voltage 200-240V

Input Current 5A

Input Frequency 50-60Hz

PFC Active PFC

Efficiency ≥88% at typical load

Fan Type HYB Fan, 120mm

Dimensions(L x W x H) 150 x 140 x 86mm

Protection OCP, OVP, OPP, SCP
