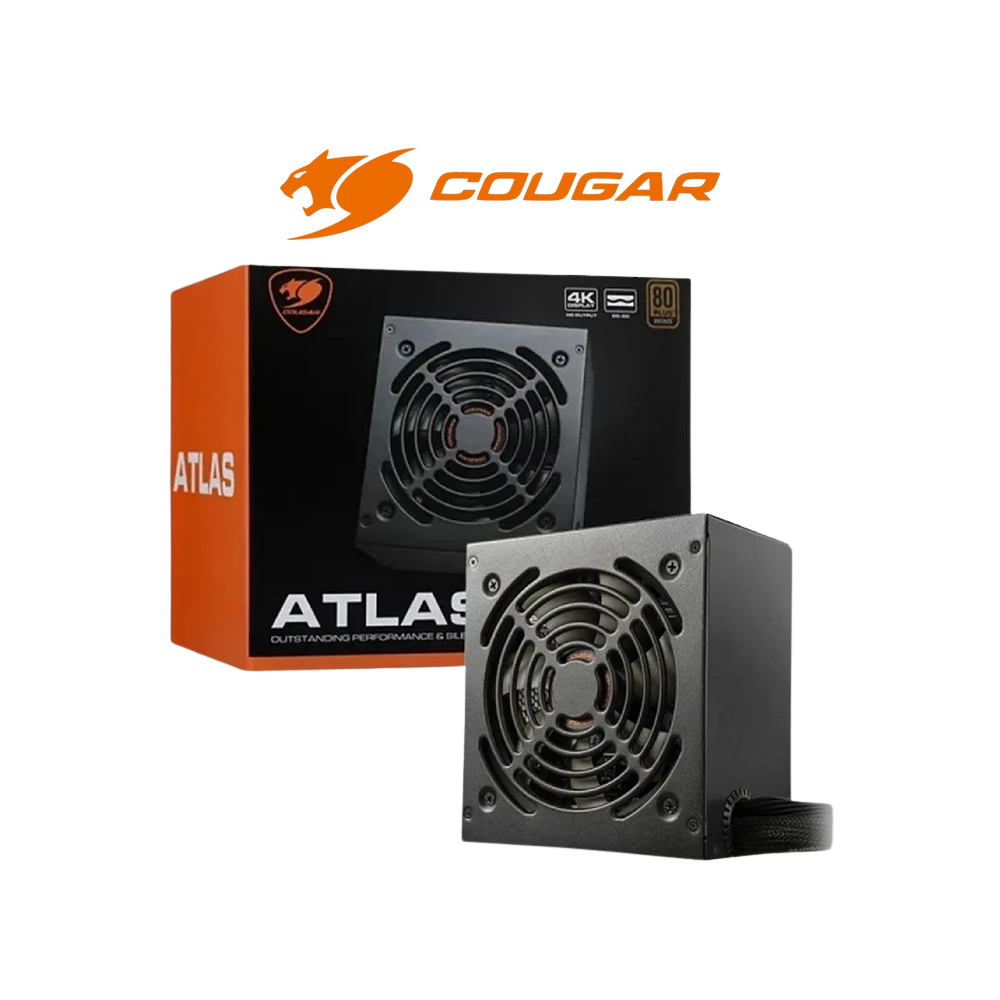

Cougar Atlas 650w | 750w PSU 80+ Bronze Power Supply

Name: Cougar Atlas 650w | 750w PSU 80+ Bronze Power Supply
Brand: Cougar
SKU: 10019
Availability: InStock

Price range: ₱2,950.00 through ₱3,350.00

The Cougar Atlas 650W and 750W PSUs are reliable, non-modular power supplies certified 80 PLUS Bronze for up to 87% efficiency, making them suitable for standard PC builds. Both models feature a single +12V rail design and active PFC to deliver stable power output. Key protections like OVP, OCP, and SCP ensure robust safety and durability for your system components.

PSU Wattage

Clear

Add to compare

Add to wishlist

Shipping & Delivery

Payment Method

Cash on Delivery, Store Pickup, Bank Transfer, Paypal, Gcash, Credit Card

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

₱590

Warranty 1 year

Contact Us

Specification

Overview

PSU Wattage	650W , 750W

Processor

PSU Wattage	650W , 750W

Display

PSU Wattage	650W , 750W

RAM

PSU Wattage	650W , 750W

Storage

PSU Wattage	650W , 750W

Video Card

PSU Wattage	650W , 750W

Connectivity

PSU Wattage	650W , 750W

Features

PSU Wattage	650W , 750W

Battery

PSU Wattage	650W , 750W

General

PSU Wattage	650W , 750W

Description

Cougar Atlas 650W 80+ Bronze Power Supply

Specification	Details
80 PLUS Certification	80 PLUS Bronze (Up to 87% efficiency)
Form Factor	ATX
Modularity	Non-Modular (Fixed cables)
Dimensions (LxWxH)	140 x 150 x 86 mm
Fan Type	120mm with automatic thermal speed control
PFC (Power Factor Correction)	Active PFC (up to 99% PF value)
Input Voltage	100-240V
Input Frequency	50-60Hz
Rail Configuration	Single +12V DC source
Total Power Output	650W
Max. Current (+3.3V)	20A
Max. Current (+5V)	20A
Max. Current (+12V)	54.16A
Max. Current (-12V)	0.3A
Max. Current (+5Vsb)	3A
Protections	SCP (Short Circuit), OCP (Over Current), OVP (Over Voltage), UVP (Under Voltage), OPP (Over Power)
Capacitors	Japanese standby capacitors
Connectors	1x 24(20+4)-pin, 2x 8(4+4)-pin CPU, 4x 8(6+2)-pin PCIe, 6x SATA, 4x Peripheral P-ATA

Cougar Atlas 750W 80+ Bronze Power Supply

Specification	Details
80 PLUS Certification	80 PLUS Bronze (Up to 87% efficiency)
Form Factor	ATX
Modularity	Non-Modular (Fixed cables)
Dimensions (LxWxH)	140 x 150 x 86 mm
Fan Type	120mm with automatic thermal speed control
PFC (Power Factor Correction)	Active PFC (up to 99% PF value)
Input Voltage	100-240V
Input Frequency	50-60Hz
Rail Configuration	Single +12V DC source
Total Power Output	750W
Max. Current (+3.3V)	22A
Max. Current (+5V)	22A
Max. Current (+12V)	62.5A
Max. Current (-12V)	0.3A
Max. Current (+5Vsb)	3A
Protections	SCP (Short Circuit), OCP (Over Current), OVP (Over Voltage), UVP (Under Voltage), OPP (Over Power)
Capacitors	Japanese standby capacitors
Connectors	1x 24(20+4)-pin, 2x 8(4+4)-pin CPU, 4x 8(6+2)-pin PCIe, 8x SATA, 3x Peripheral P-ATA
