Colorful Battle-AX B450M-T M.2 V14 AM4 Motherboard
Availability: Confirm Stock & Price before Ordering.
₱3,350.00

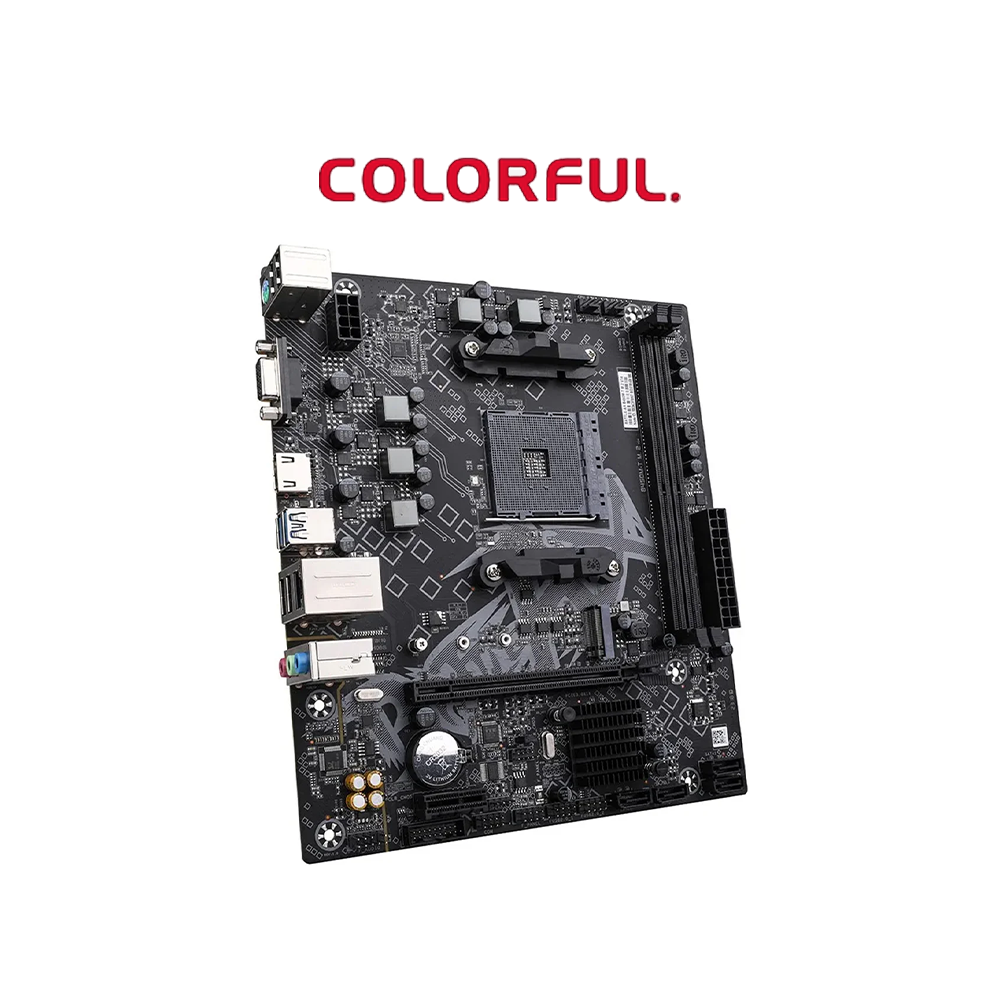

The Colorful Battle-AX B450M-T M.2 V14 is a cost-effective Micro-ATX motherboard built on the AMD B450 chipset, providing an AM4 platform that supports AMD Ryzen series processors.
Shipping & Delivery
-
Payment Method
Cash on Delivery, Store Pickup, Bank Transfer, Paypal, Gcash, Credit Card
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
₱590
-
Warranty 1 year
Specification
Overview
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
Processor
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
Display
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
RAM
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
Storage
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
Video Card
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
Connectivity
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
Features
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
Battery
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
General
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
Description
| Feature | Specification Details |
|---|---|
| Model | BATTLE-AX B450M-T M.2 V14 |
| Series | BATTLE-AX Series |
| Chipset | AMD B450 |
| Form Factor | Micro-ATX (M-ATX), 220mm × 195mm |
| CPU Socket | Socket AM4 |
| Processor Support | AMD Ryzen Series Processors (Supports Ryzen 1000 through 5000 series with appropriate BIOS updates) |
| Memory Slots | 2 × DDR4 DIMM slots (Dual Channel) |
| Maximum Memory Capacity | Up to 64 GB (Maximum 32 GB per slot) |
| Memory Speed Support | DDR4-3600(OC) / 3200(OC) / 3000(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 MHz |
| Memory Profiles | Supports Extreme Memory Profile (XMP) technology |
| Expansion Slots | 1 × PCIe 3.0 x16 slot (for dedicated graphics card) 1 × PCIe 3.0 x1 slot |
| Storage Interfaces | 1 × M.2 slot (Supports 2242/2260/2280 specs, PCIe 3.0 x4 NVMe & SATA SSDs) 4 × SATA 6Gb/s ports |

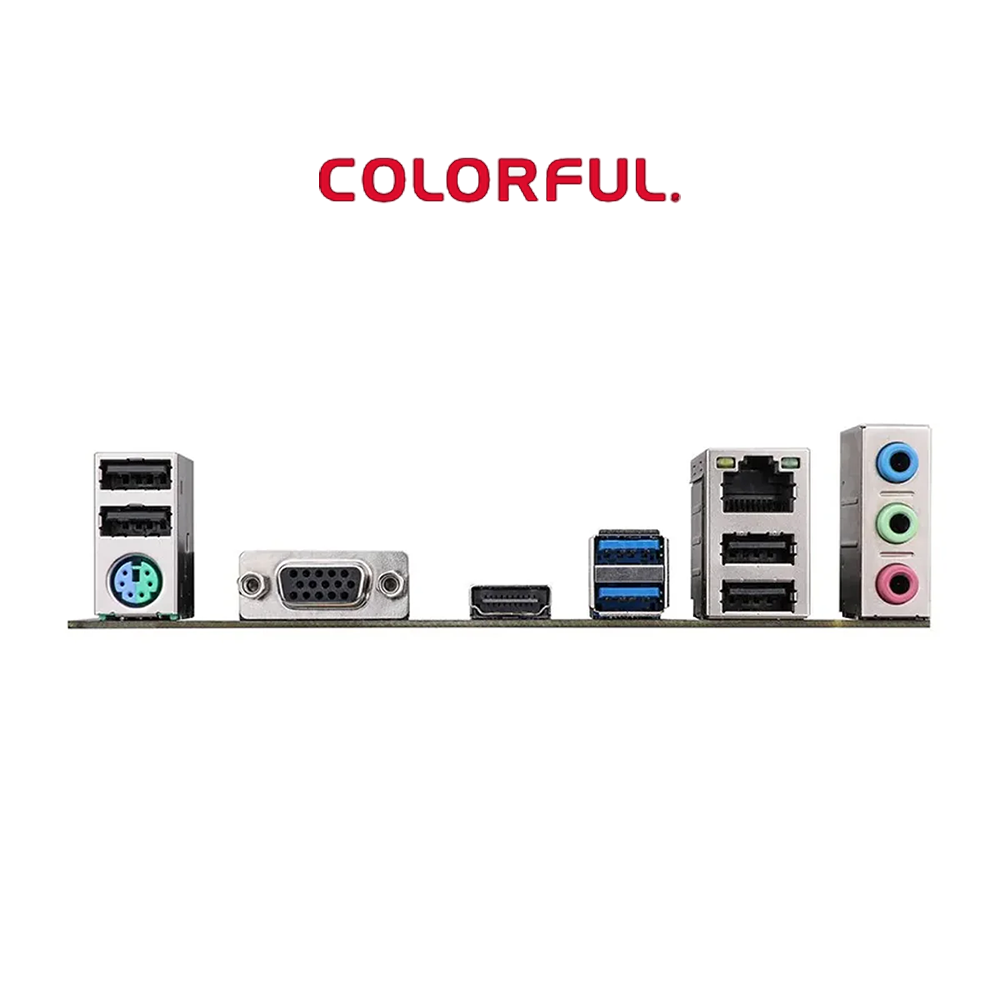

| Rear I/O Ports | 2 × USB 3.2 Gen 1 Type-A ports 4 × USB 2.0 ports 1 × HDMI 2.0 port (Supports up to 4K @ 60Hz) 1 × VGA port 1 × PS/2 combo port 1 × RJ45 Gigabit LAN port 3 × Audio jacks (Line-In, Line-Out, Mic) |
| Internal Headers | 1 × CPU Fan header 1 × System Fan header 1 × USB 3.2 Gen 1 header (supports 2 additional USB 3.2 ports) 2 × USB 2.0 headers (supports 4 additional USB 2.0 ports) Front Panel Audio, Front Panel System, Speaker, and Clear CMOS jumpers |
| Audio Codec | Realtek ALC897 High-Fidelity Codec (5.1 Channel HD Audio) |
| Networking/LAN | Realtek RTL8111H Gigabit Ethernet controller |
| BIOS | 128M UEFI BIOS with multi-language support |
| Key Structural Features | Upgraded PCB atomization process and 6 multi-stage protective circuit technologies |
