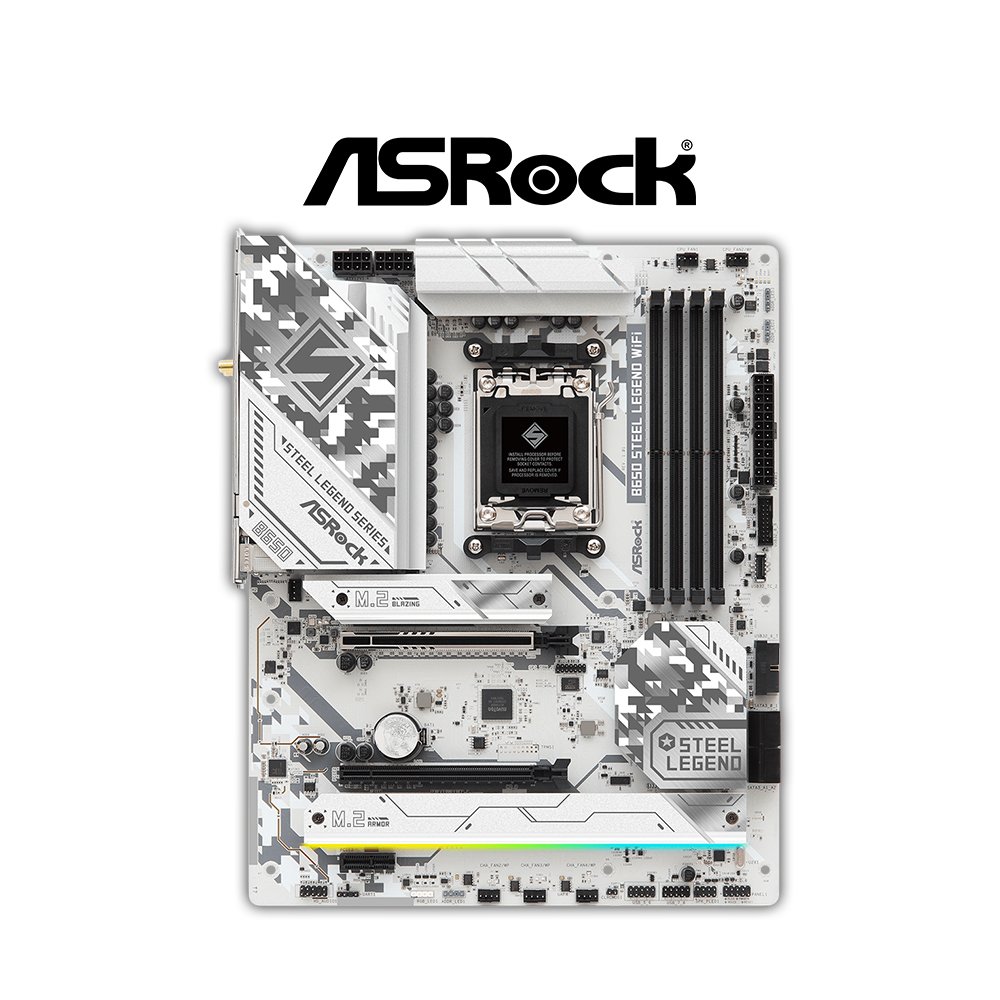

ASRock B650 Steel Legend WiFi ATX Motherboard AM5

₱14,950.00

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
14+2+1 Power Phase, 80A Dr.MOS for Vcore
4 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC)
1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1
Graphics Output Options: 1 HDMI, 1 DisplayPort
Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4)
1 USB 3.2 Gen2x2 Type-C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
1 USB 3.2 Gen2 Type-A (Rear)
8 USB 3.2 Gen1 Type-A (4 Rear, 4 Front)
8 USB 2.0 (4 Rear, 4 Front)
Dragon 2.5G LAN
802.11axe WiFi 6E + Bluetooth
Supports ASRock Auto Driver Installer, BIOS Flashback

Add to compare

Add to wishlist

URL has been copied successfully!

Shipping & Delivery

Payment Method

Cash on Deliver, Store Pickup, Bank Transfer, Paypal, Gcash, Credit Card

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

₱590

Warranty 1 year

Contact Us

Specification

Overview

Socket (Builder)	AM5
RAM (Builder)	DDR5

Processor

Socket (Builder)	AM5
RAM (Builder)	DDR5

Display

Socket (Builder)	AM5
RAM (Builder)	DDR5

RAM

Socket (Builder)	AM5
RAM (Builder)	DDR5

Storage

Socket (Builder)	AM5
RAM (Builder)	DDR5

Video Card

Socket (Builder)	AM5
RAM (Builder)	DDR5

Connectivity

Socket (Builder)	AM5
RAM (Builder)	DDR5

Features

Socket (Builder)	AM5
RAM (Builder)	DDR5

Battery

Socket (Builder)	AM5
RAM (Builder)	DDR5

General

Socket (Builder)	AM5
RAM (Builder)	DDR5

Description

CPU

– Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*

*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset

– AMD B650
Memory

– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
– Max. capacity of system memory: 256GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS

– 256Mb AMI UEFI Legal BIOS with GUI support
Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio

– 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
– Individual PCB Layers for R/L Audio Channel
– Impedance Sensing on Rear Out port
– Nahimic Audio
LAN

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
Wireless LAN

– 802.11axe Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax/axe
– Supports Dual-Band 2×2 with extended 6GHz band* support
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.2 + High speed class II
– Supports MU-MIMO

*The Wi-Fi 6E module is supported by Microsoft Windows^® 11 only. There is no driver available for Windows^® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows^® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Slots

CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
– 1 x PCIe 4.0 x1 Slot (PCIE3)*
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– Supports AMD CrossFire™
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

* Supports NVMe SSD as boot disks
If SATA3_0 and SATA3_1 are occupied, PCIE2 will downgrade to x2 mode.
Storage

CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 2 x SATA3 6.0 Gb/s Connectors**
ASMedia ASM1061:
– 2 x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks
** If SATA3_0 and SATA3_1 are occupied, PCIE2 will downgrade to x2 mode.
RAID

– Supports RAID 0 and RAID 1 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

* Requires additional M.2 NVMe expansion cards to support RAID 10
USB

CPU:
– 1 x USB 3.2 Gen2 Type-A (Rear)
– 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_12)) Chipset:
– 1 x USB 3.2 Gen2x2 Type-C (Rear)
– 1 x USB 3.2 Gen1 Type-C (Front)
– 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_34), 4 Front)
– 8 x USB 2.0 (4 Rear, 4 Front)

* All USB ports support ESD Protection
Connector

– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header

* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~4/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

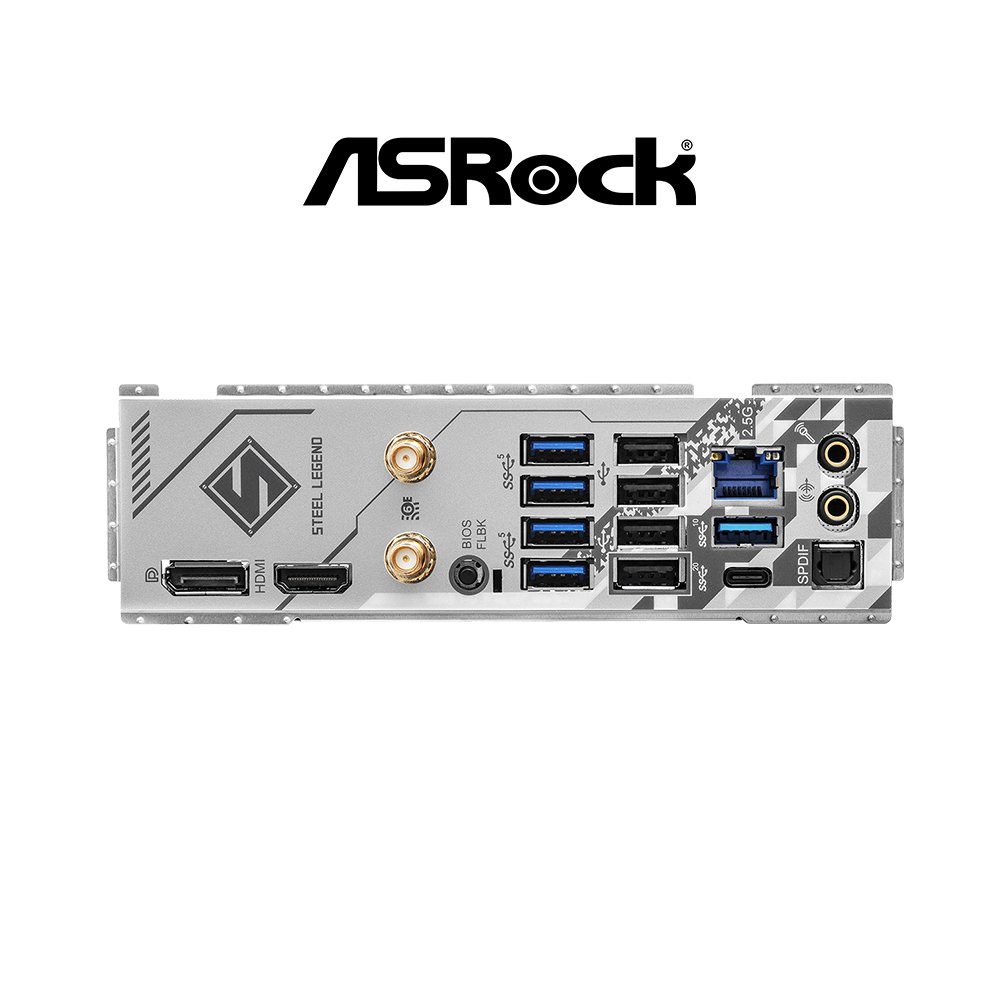

Rear Panel I/O

– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x Optical SPDIF Out Port
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
– 4 x USB 3.2 Gen1 Type-A Ports (USB32_34 support Ultra USB Power.)
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– 1 x Line Out Jack (Gold Audio Jack)
– 1 x Microphone Input Jack (Gold Audio Jack)
Software and UEFI

Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories

– 1 x User Manual
– 2 x SATA Data Cables
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas
– 3 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket
Form Factor

– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 8 Layer PCB
OS

– Microsoft Windows^® 10 64-bit / 11 64-bit
Certifications

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
