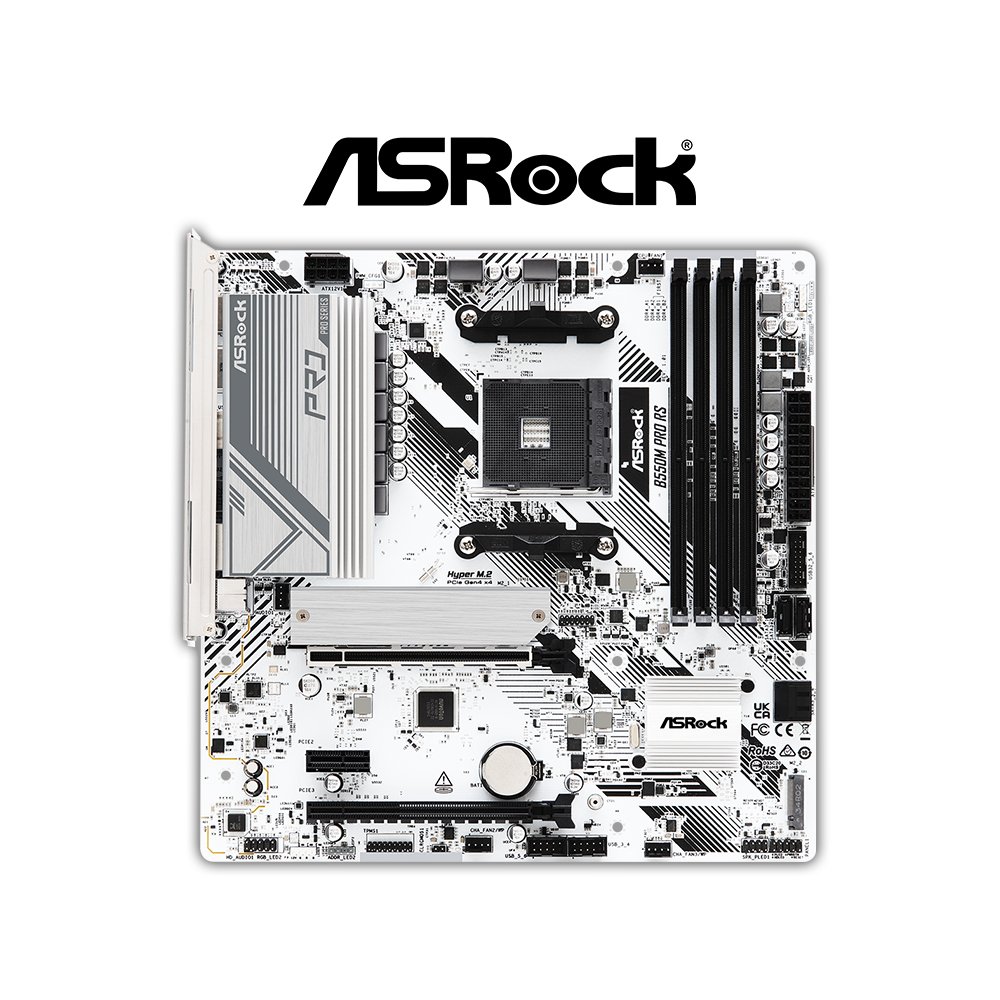

ASrock B550M Pro RS Micro ATX Motherboard

₱5,950.00

Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
8 Power Phase
4 x DDR4 DIMMs, supports up to 4733+ (OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3, 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2 & SATA3)
6 USB 3.2 Gen1 (4 Rear, 2 Front),
6 USB 2.0 (2 Rear, 4 Front)
Dragon 2.5G LAN

Add to compare

Add to wishlist

URL has been copied successfully!

Shipping & Delivery

Payment Method

Cash on Deliver, Store Pickup, Bank Transfer, Paypal, Gcash, Credit Card

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

₱590

Warranty 1 year

Contact Us

Specification

Overview

Socket (Builder)	AM4
RAM (Builder)	DDR4

Processor

Socket (Builder)	AM4
RAM (Builder)	DDR4

Display

Socket (Builder)	AM4
RAM (Builder)	DDR4

RAM

Socket (Builder)	AM4
RAM (Builder)	DDR4

Storage

Socket (Builder)	AM4
RAM (Builder)	DDR4

Video Card

Socket (Builder)	AM4
RAM (Builder)	DDR4

Connectivity

Socket (Builder)	AM4
RAM (Builder)	DDR4

Features

Socket (Builder)	AM4
RAM (Builder)	DDR4

Battery

Socket (Builder)	AM4
RAM (Builder)	DDR4

General

Socket (Builder)	AM4
RAM (Builder)	DDR4

Description

Unique Feature

Rock-Solid Durability
– 8 Power Phase
– Pre-Installed I/O Shield
Ultrafast Connectivity
– 2.5G LAN
CPU

– Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Chipset

– AMD B550
Memory

– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– Max. capacity of system memory: 128GB*
– Supports Extreme Memory Profile (XMP) memory modules* Please refer to below table for AMD non-XMP memory frequency support. For more details, please refer to the QVL on ASRock’s website.
– 128Mb AMI UEFI Legal BIOS with GUI support
Graphics

Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* (Actual support may vary by CPU)
– 1 x HDMI 2.1, supports HDR, HDCP 2.3, 4K Ultra HD (UHD) playback and max. resolution up to 4K 60Hz*
– 1 x DisplayPort 1.4, supports HDCP 2.3, 4K Ultra HD (UHD) playback and max. resolution up to 5K 120Hz*

* Picasso supports HDCP 2.2 with HDMI 2.0 Port
Audio

– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
Slots

AMD Ryzen series CPUs (Vermeer and Matisse)
– 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
– 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*
– 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)
– Supports AMD CrossFire™
– 1 x PCIe 3.0 x1 Slot (PCIE2: x1 mode)

* AMD Ryzen series APUs (Cezanne and Renoir)
AMD Ryzen series APUs (Picasso)
** Supports NVMe SSD as boot disks
Storage

CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso)*
Chipset:
– 1 x M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
– 4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks
NVMe SSD is not supported with AMD Athlon™ 3000G Processors
RAID

– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB

CPU:
– 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_12), 2 Front (USB3_5_6)) Chipset:
– 2 x USB 3.2 Gen1 Type-A (Rear (USB32_34))
– 6 x USB 2.0 (2 Rear, 4 Front)

* All USB ports support ESD Protection
Connector

– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 2 x RGB LED Headers*
– 2 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

* Support in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CHA_FAN1~3/WP support the fan power up to 2A (24W).
CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

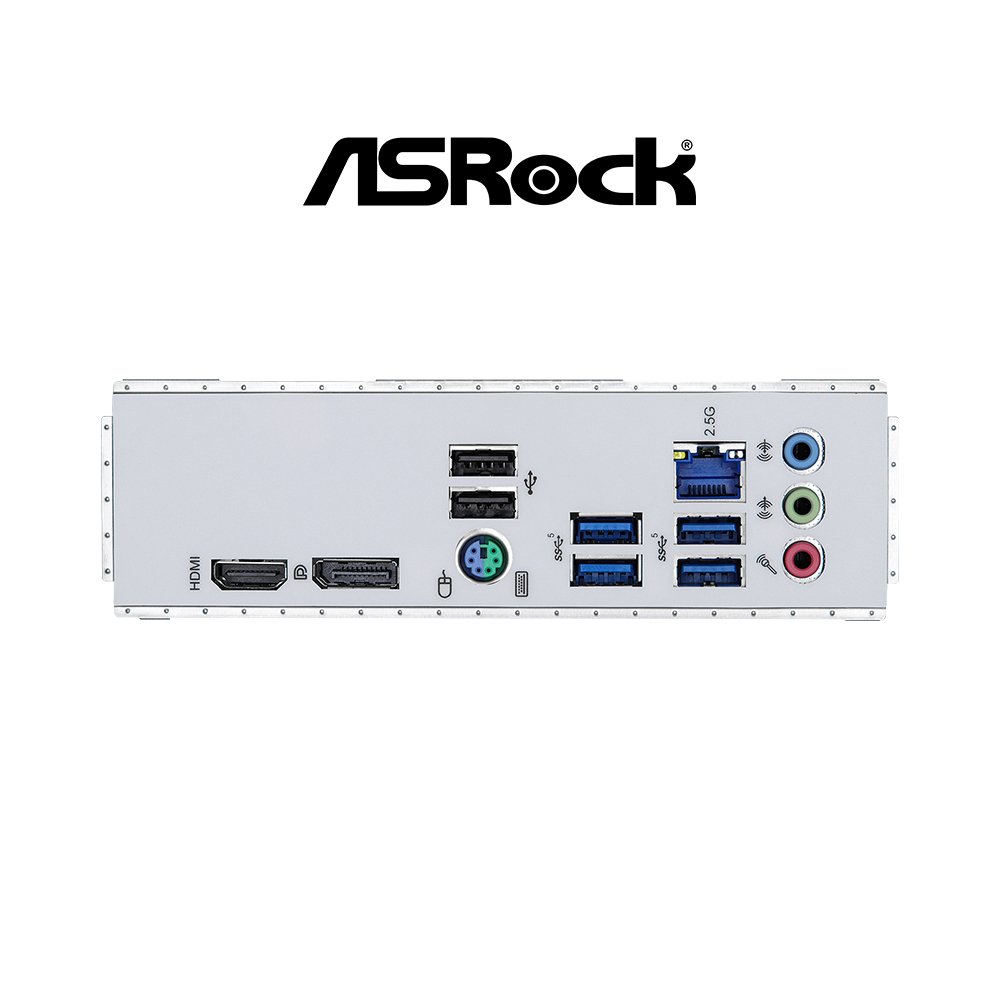

Rear Panel I/O

– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 4 x USB 3.2 Gen1 Ports
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port with LED
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI

Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories

– 1 x User Manual
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket
Form Factor

– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
– 2oz Copper PCB
OS

– Microsoft Windows^® 10 64-bit / 11 64-bit
Certifications

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
