Asrock A520M-HVS AM4 DDR4 Motherboard
Availability: Confirm Stock & Price before Ordering.

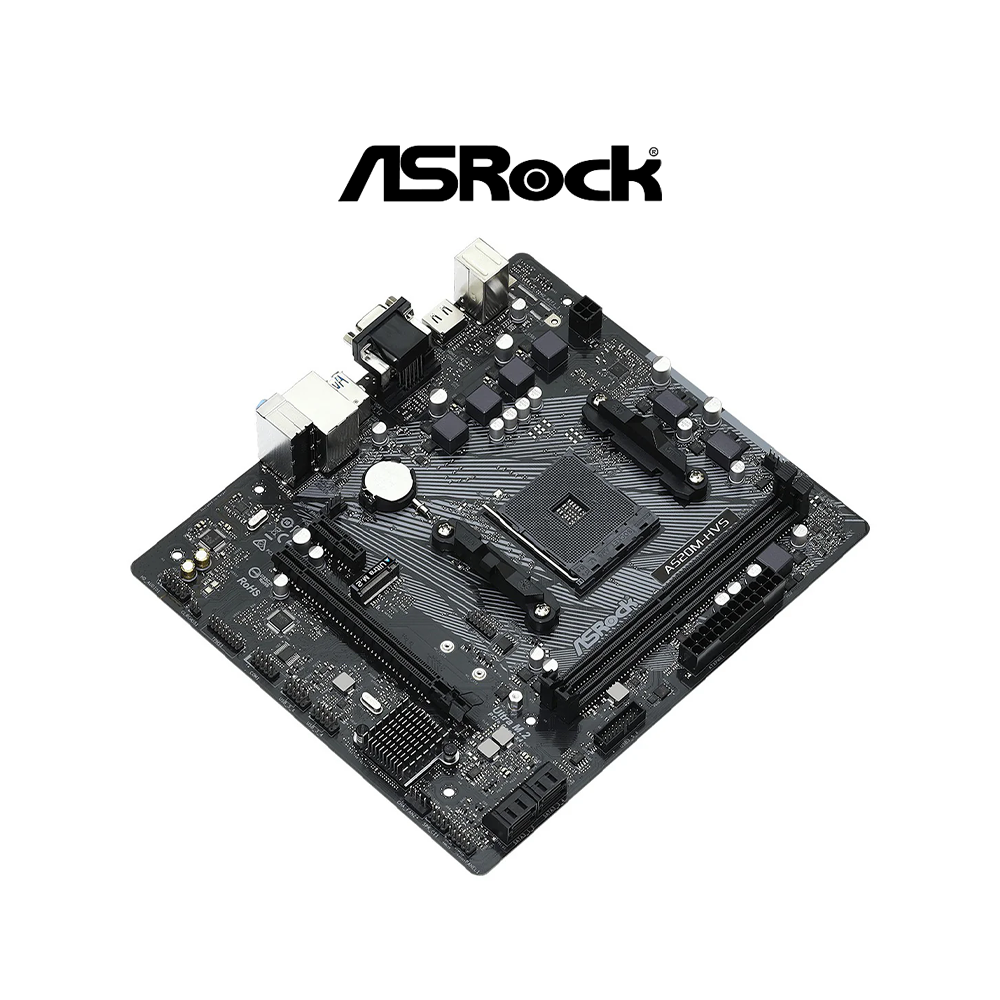

The ASRock A520M-HVS is a budget-friendly micro-ATX motherboard built on the AMD A520 chipset, supporting AMD Ryzen desktop processors utilizing the AM4 socket.
Shipping & Delivery
-
Payment Method
Cash on Delivery, Store Pickup, Bank Transfer, Paypal, Gcash, Credit Card
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
₱590
-
Warranty 1 year
Specification
Overview
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
Processor
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
Display
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
RAM
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
Storage
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
Video Card
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
Connectivity
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
Features
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
Battery
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
General
| CPU Socket | AM4 |
|---|---|
| RAM Type | DDR4 |
Description
| Feature | Specification |
|---|---|
| Brand / Model | ASRock A520M-HVS |
| Form Factor | Micro ATX (9.0 in x 7.9 in / 23.0 cm x 20.1 cm) |
| CPU Socket | AMD AM4 |
| Chipset | AMD A520 |
| Processor Support | AMD Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000, and 5000 G-Series |
| Power Phase | 6 Power Phase Design |
| Memory Slots | 2 x DDR4 DIMM slots |
| Max Memory Capacity | Up to 64GB |
| Memory Speeds | DDR4 3200 (Native) / up to 4733+ MHz (Overclocked) |
| Memory Architecture | Dual Channel |
| ECC Support | Supports ECC & non-ECC, unbuffered memory |
| Expansion Slots | 1 x PCIe 3.0 x16 slot, 1 x PCIe 3.0 x1 slot |
| Storage Ports | 4 x SATA3 6.0 Gb/s (Supports RAID 0, RAID 1, RAID 10) |
| M.2 Slots | 1 x Ultra M.2 Socket (PCIe Gen3 x4 32Gb/s & SATA3) |
| Audio | 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) |
| LAN | Realtek RTL8111H Gigabit Ethernet (10/100/1000 Mb/s) |

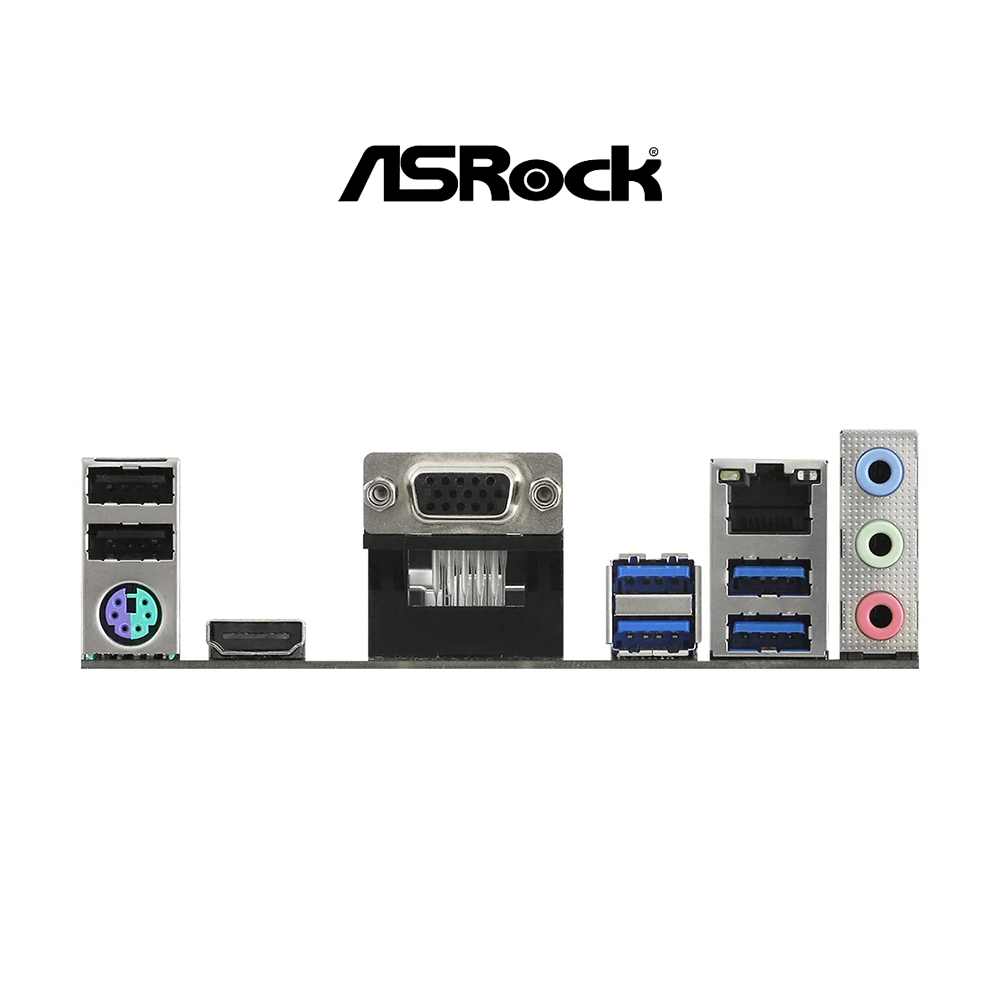

| Rear Panel I/O Ports | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub (VGA) Port 1 x HDMI 2.1 Port (Max 4K @60Hz) 4 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port with LED 3 x HD Audio Jacks (Line In / Front Speaker / Microphone) |
| Internal Headers | 1 x SPI TPM Header 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 2 x Chassis Fan Connectors (4-pin) 1 x 24-pin ATX Power Connector 1 x 4-pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Supports 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
